AK-09903-S

Representative photo(s): actual product specifications may vary from that shown in the photo

Percutaneous Sheath Introducer Kit with Integral Hemostasis Valve/Side Port for use with 7.5 - 8 Fr. Catheters

PSI KIT: 9 FR

SKU / Article #: AK-09903-S

Contraindications & Considerations

  • Not made with natural rubber latex.
  • Includes Lidocaine
  • Precaution: Contains Phthalate: DEHP

Sales Quantity/Case: 10

Percutaneous Sheath Introducer Kit with Integral Hemostasis Valve/Side Port for use with 7.5 - 8 Fr. Catheters
SKU / Article #: AK-09903-S
Quantity Component Description

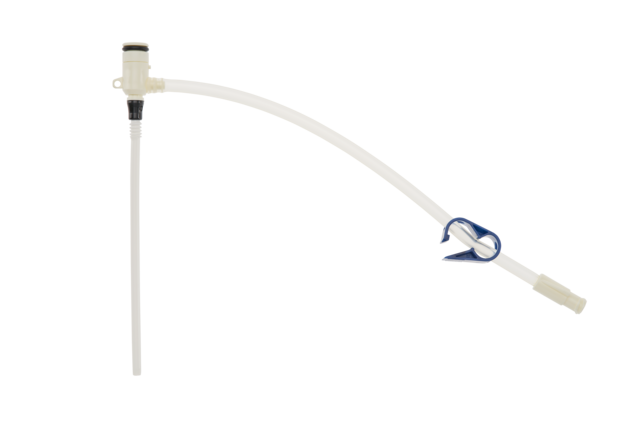

1 Sheath: 9 Fr. x 4" (10 cm) Arrow-Flex® Radiopaque Polyurethane with Integral Hemostasis Valve/Side Port and Tissue Dilator
1 Spring-Wire Guide, Marked: .035" (0.89 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®1 One-Step Solution with Hi-Lite Orange Tint (non-sterile solution)
1 Obturator: 8 Fr.
1 Cath-Gard® Catheter Contamination Shield: 80 cm with TwistLock Adapter
1 Dust Cap: Non-Vented
1 SharpsAway® Disposal Cup
1 Drape: 24" x 36" (61 cm x 91 cm) with 4" (10 cm) fenestration
1 Drape: 24" x 36" (61 cm x 91 cm)
1 Scalpel: #11
1 Stopcock: 4-way High-Flow
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Braided Silk with Straight Needle
1 TubingĀ±: 20" (50 cm) Extension
1 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 09907 100a
  • K 07800 112
  • Ik 09903 100q
  • P 02000 100
Scroll to View More
  • K 09907 100a
  • K 07800 112
Scroll to View More
  • Ik 09903 100q
  • P 02000 100
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
