AK-42854-CDC

Representative photo(s): actual product specifications may vary from that shown in the photo

ARROWg+ard Blue PLUS® Quad-Lumen CVC

MULTI-LUMEN CVC KIT: 4-L 8.5 FR X 6" (16 CM)

SKU / Article #: AK-42854-CDC

Highlights

  • Antimicrobial: Arrowg+ard Blue Plus*
  • Sharps Safety

Contraindications & Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.[Not made with natural rubber latex.pdf]
  • Includes Lidocaine

Sales Quantity/Case: 5

ARROWg+ard Blue PLUS® Quad-Lumen CVC
SKU / Article #: AK-42854-CDC
Quantity Component Description

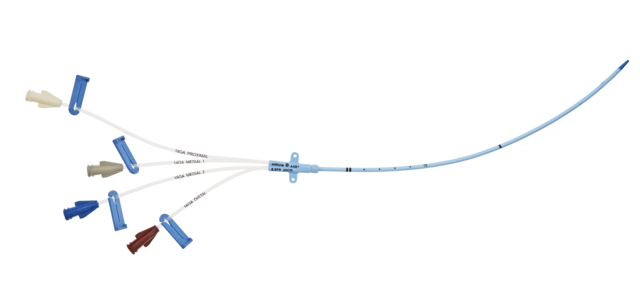

1 Quad-Lumen Indwelling Catheter: 8.5 Fr. x 16 cm Radiopaque Polyurethane with Blue FlexTip®, ARROWg+ard Blue Plus® Antimicrobial Surface Treatment1, Extension Line Clamps
1 Spring-Wire Guide, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 10 Fr. (3.5 mm) x 10.2 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®2 One-Step Solution with Hi-Lite Orange Tint (non-sterile solution)
4 Dust Cap: Non-Vented
1 SecondSite Adjustable Hub: Fastener
1 SecondSite Adjustable Hub: Catheter Clamp
1 SharpsAway II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Drape: 41" x 55" with 4" fenestration
1 Safety Scalpel: #11
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Braided Silk with Straight Needle
1 Licensed under US Patent Nos. 6,706,024, 6,872,195 and 7,329,412.
2 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 112
  • S 15703 111a
  • Ik 42854 101f
  • A 40000 100d
Scroll to View More
  • K 07800 112
  • S 15703 111a
  • A 40000 100d
Scroll to View More
  • Ik 42854 101f
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
