CA-05052-HPX

Representative photo(s): actual product specifications may vary from that shown in the photo

Pressure Injectable PICC Set with Blue FlexTip® Catheter and 130 cm Marked Wire

PICC KIT 2-LUMEN: 5 FR X 19-5/8" (50 CM)

SKU / Article #: CA-05052-HPX

Highlights

  • Sharps Safety

Contraindications & Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable PICC Set with Blue FlexTip® Catheter and 130 cm Marked Wire
SKU / Article #: CA-05052-HPX
Quantity Component Description

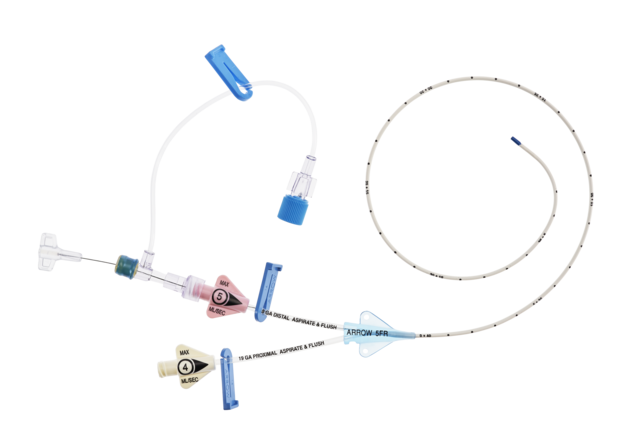

1 Two-Lumen Indwelling Catheter: 5 Fr. x 50 cm Radiopaque Polyurethane with Blue FlexTip®, T-Port Connector, Extension Line Clamps, Contamination Guard and Placement Wire
1 GlideThru Peel-Away Sheath: 5 Fr. x 1-1/4" (3 cm) Radiopaque over 5 Fr. Dilator
1 Sheath: 14 Ga. x 2-3/4" (7 cm) Radiopaque Peel-Away over 5 Fr. Dilator
1 Spring-Wire Guide: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on Both Ends)
1 Spring-Wire Guide, Marked: .018" (0.46 mm) dia. x 51-3/16" (130 cm)(Straight Soft Tip on One End - Straight Stiff Tip on Other)
1 Introducer Needle: 21 Ga. x 1-1/2" (3.81 cm) TW
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
3 Syringe: 10 mL Luer-Lock
1 Syringe: 5 mL Luer-Lock
2 Dust Cap: Non-Vented
1 SecondSite Adjustable Hub: Fastener
1 SecondSite Adjustable Hub: Catheter Clamp
1 SharpsAway II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Catheter Trimmer
1 Drape: 41" x 55" with 4" fenestration
1 Forceps
1 Safety Scalpel: #11
1 PICC Line Insertion Checklist
1 Patient ID Card
1 Chart Sticker
1 Patient Information Booklet
2 Paper Tape Measure
1 Tourniquet
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
8 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Dressing: Tegaderm®1 15.5 cm x 10 cm
1 Dressing: STATLOCK®2 Catheter Stabilization Device
1 Tape: Steri-Strip®1
1 A registered trademark of 3M Company.
2 A registered trademark of C. R. Bard, Inc.
