CS-15703-HP

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Three-Lumen CVC

CVC KIT: 3-LUMEN 7 FRX 20 CM

SKU / Article #: CS-15703-HP

Highlights

  • CE Mark

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 5

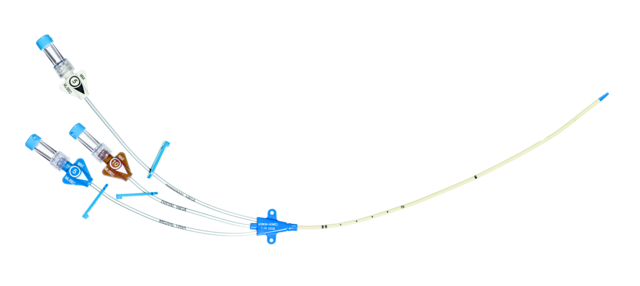

Pressure Injectable Three-Lumen CVC
SKU / Article #: CS-15703-HP
Quantity Component Description
1 Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 20 cm, Pressure Injectable
1 Spring-Wire Guide, Nitinol, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer with ECG Mark
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW
1 Pressure Transduction Probe
1 Arrow® Raulerson Spring-Wire Introduction Syringe: 5 mL
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
3 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 Dressing: GRIP-LOK®1 Catheter Fixation Device
1 A registered trademark of TIDI.

Documents

  • S 15703 123b
  • Sz 00400 100b
  • Lbl056286
Scroll to View More
  • S 15703 123b
  • Sz 00400 100b
Scroll to View More
  • Lbl056286
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
