AK-09903-CDC

Representative photo(s): actual product specifications may vary from that shown in the photo

Percutaneous Sheath Introducer Kit with Integral Hemostasis Valve/Side Port for use with 7.5 - 8 Fr. Catheters

PSI KIT: 9 FR

SKU / Article #: AK-09903-CDC

Highlights

  • Sharps Safety

Contraindications & Considerations

  • Not made with natural rubber latex.
  • Includes Lidocaine
  • Precaution: Contains Phthalate: DEHP

Sales Quantity/Case: 10

Percutaneous Sheath Introducer Kit with Integral Hemostasis Valve/Side Port for use with 7.5 - 8 Fr. Catheters
SKU / Article #: AK-09903-CDC
Quantity Component Description

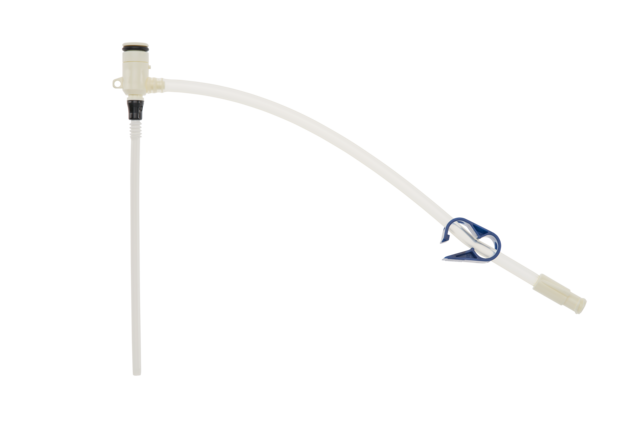

1 Sheath: 9 Fr. x 4" (10 cm) Arrow-Flex® Radiopaque Polyurethane with Integral Hemostasis Valve/Side Port and Tissue Dilator
1 Spring-Wire Guide, Marked: .035" (0.89 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®1 One-Step Solution with Hi-Lite Orange Tint
1 Obturator: 8 Fr.
1 Cath-Gard® Catheter Contamination Shield: 80 cm with TwistLock Adapter
1 Dust Cap: Non-Vented
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Drape: 24" x 36" (61 cm x 91 cm) with 4" (10 cm) fenestration
1 Drape: 24" x 36" (61 cm x 91 cm)
1 Drape: 41" x 55" with 4" fenestration
1 Needle Holder
1 Safety Scalpel: #11
1 Stopcock: 4-way High-Flow
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Silk with Curved Needle
1 Suture: 3-0 Braided Silk with Straight Needle
1 TubingĀ±: 20" (50 cm) Extension
1 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • Ik 09903 125a
  • K 07800 121
  • K 09907 100a
Scroll to View More
  • Ik 09903 125a
Scroll to View More
  • K 07800 121
  • K 09907 100a
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
