AK-16553

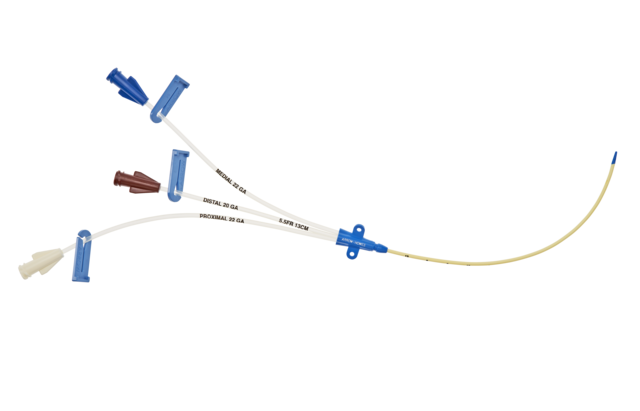

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Three-Lumen CVC

CVC KIT: 3-LUMEN 5.5 FR X 13 CM

SKU / Article #: AK-16553

Considerations

  • Not made with natural rubber latex.
  • Includes Lidocaine

Sales Quantity/Case: 5

Three-Lumen CVC
SKU / Article #: AK-16553
Quantity Component Description
1 Three-Lumen Catheter: 5.5 Fr. (1.9 mm OD) x 13 cm
1 Spring-Wire Guide: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other)
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Introducer Needle: 21 Ga. x 1-1/2" (3.81 cm) TW
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Catheter: 22 Ga. x 1-3/4" (4.45 cm) Radiopaque over 25 Ga. RW Introducer Needle with 5 mL Luer-Slip Syringe
1 Injection Needle: 25 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 6 Fr. (2.0 mm) x 7.6 cm
1 Tissue Dilator: 6 Fr. (2.0 mm) x 4.1 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®1 One-Step Solution with Hi-Lite Orange™ Tint
3 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® Disposal Cup
1 Drape: 18" x 26" (46 cm x 66 cm) with 3" (7.6 cm) fenestration
1 Scalpel: #11
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Braided Silk with Straight Needle
1 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 121

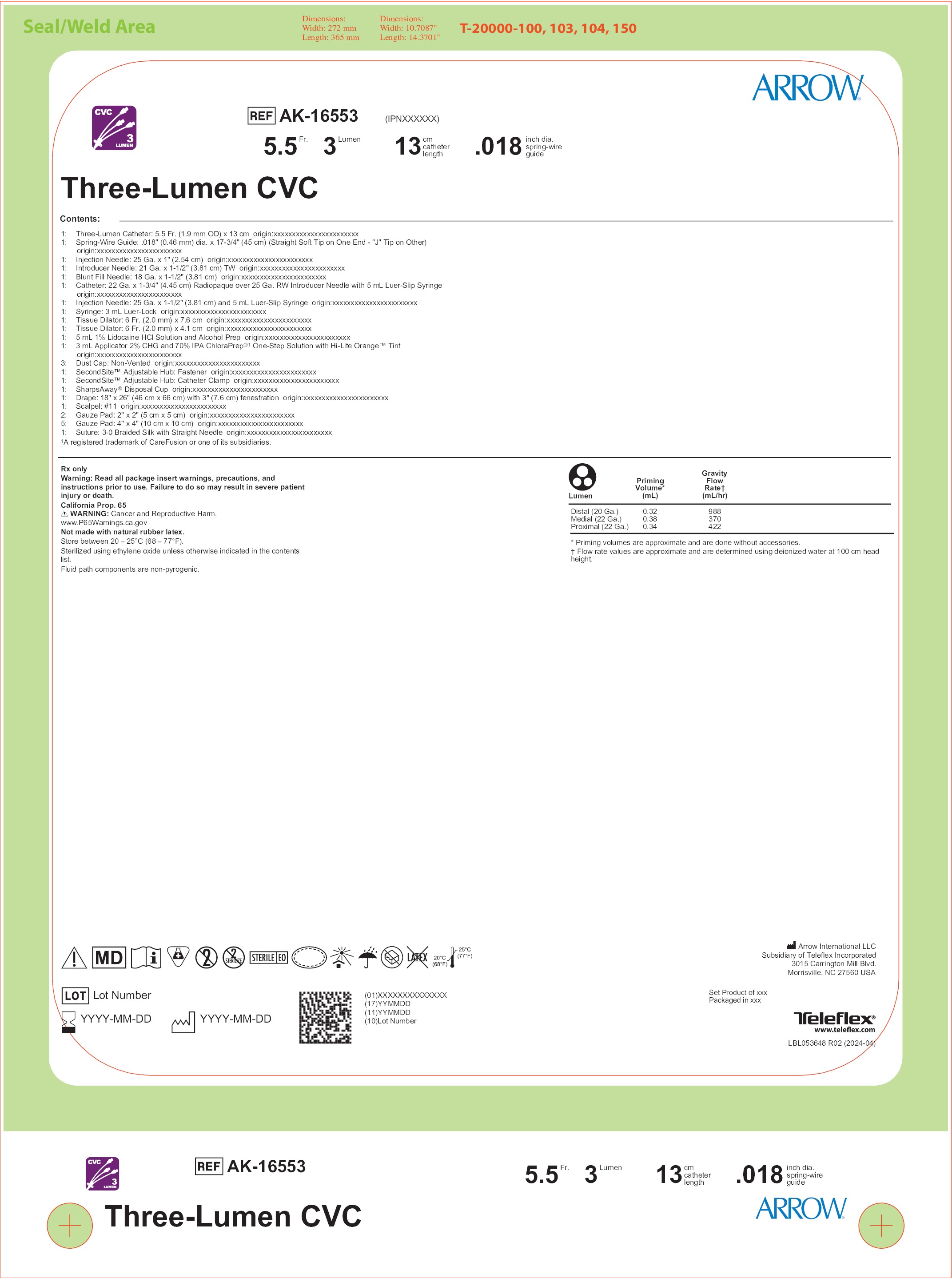

  • Lbl053648
  • S 15703 111b
Scroll to View More
  • K 07800 121
  • S 15703 111b
Scroll to View More
  • Lbl053648
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
