AK-21242-CDC

Representative photo(s): actual product specifications may vary from that shown in the photo

MAC Two-Lumen Central Venous Access Kit with Arrowg+ard Blue® Access Device and Integral Hemostasis Valve for use with 7 - 8 Fr. Catheters

MULTI-LUMEN/PSI KIT

SKU / Article #: AK-21242-CDC

Highlights

  • Antimicrobial: Arrowg+ard Blue*
  • Sharps Safety

Contraindications & Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.[Not made with natural rubber latex.pdf]
  • Includes Lidocaine
  • Precaution: Contains Phthalate: DEHP

Sales Quantity/Case: 10

MAC Two-Lumen Central Venous Access Kit with Arrowg+ard Blue® Access Device and Integral Hemostasis Valve for use with 7 - 8 Fr. Catheters
SKU / Article #: AK-21242-CDC
Quantity Component Description

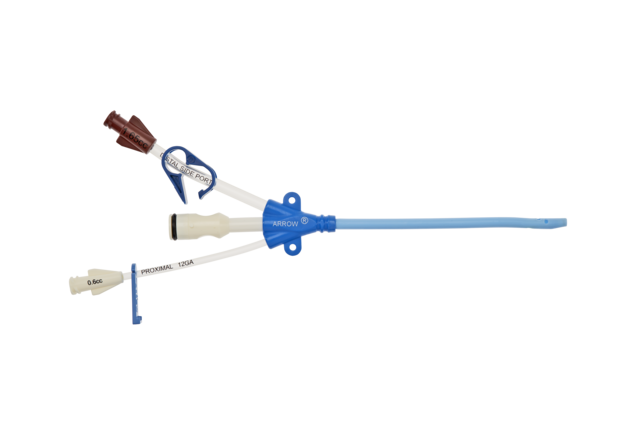

1 Two-Lumen Central Venous Access Device1: 4-1/2" (11.5 cm) Radiopaque Polyurethane with 9 Fr. Distal Lumen, ARROWg+ard® Antimicrobial Surface Treatment2, Integral Hemostasis Valve, Extension Line Clamps
1 Spring-Wire Guide, Marked: .035" (0.89 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®3 One-Step Solution with Hi-Lite Orange Tint (non-sterile solution)
1 Obturator: 8 Fr.
1 Cath-Gard® Catheter Contamination Shield: 80 cm with Tuohy-Borst Adapter, Sterile Tape
1 Dust Cap: Vented
2 Dust Cap: Non-Vented
1 SharpsAway II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Drape: 24" x 36" (61 cm x 91 cm) with 4" (10 cm) fenestration
1 Drape: 41" x 55" with 4" fenestration
1 Needle Holder
1 Safety Scalpel: #11
1 Stopcock: 4-way High-Flow
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Silk with Curved Needle
1 Suture: 3-0 Braided Silk with Straight Needle
1 TubingĀ±: 20" (50 cm) Extension
1 Licensed under US Patent No. 5,250,038.
2 Licensed under US Patent No. 6,706,024.
3 A registered trademark of CareFusion or one of its subsidiaries.

Documents

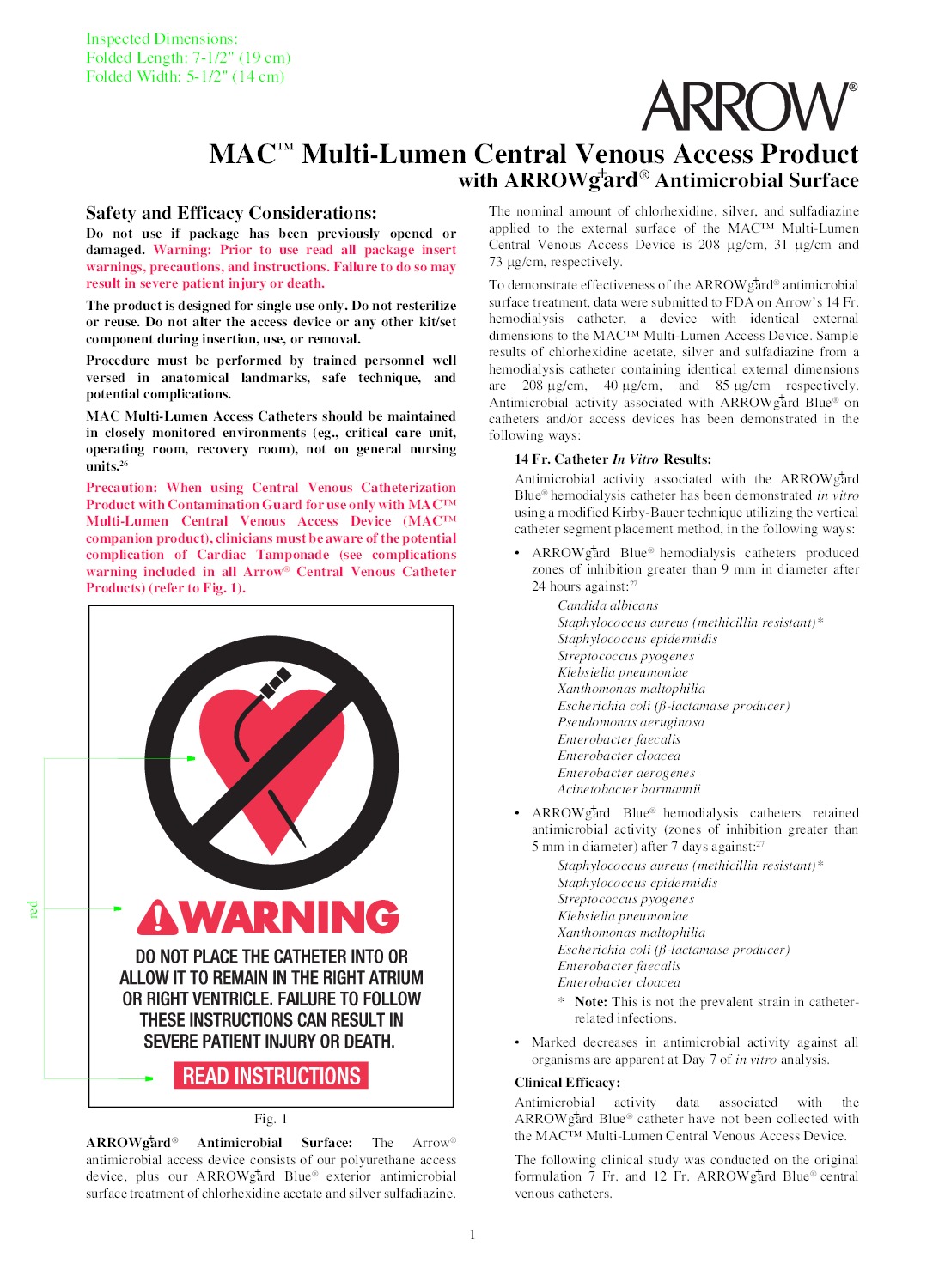

  • K 21243 100e
  • K 07800 112
  • Ik 21242 101g
Scroll to View More
  • K 21243 100e
  • K 07800 112
Scroll to View More
  • Ik 21242 101g
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
