ASK-45703-NOL

Representative photo(s): actual product specifications may vary from that shown in the photo

ARROWg+ard Blue PLUS® Multi-Lumen Central Venous Catheterization Kit

MULTI-LUMEN CVC KIT: 3-L 7 FR X 8"

SKU / Article #: ASK-45703-NOL

Highlights

  • Antimicrobial: Arrowg+ard Blue Plus*
  • Sharps Safety

Contraindications & Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • ǂMR Conditional

Sales Quantity/Case: 5

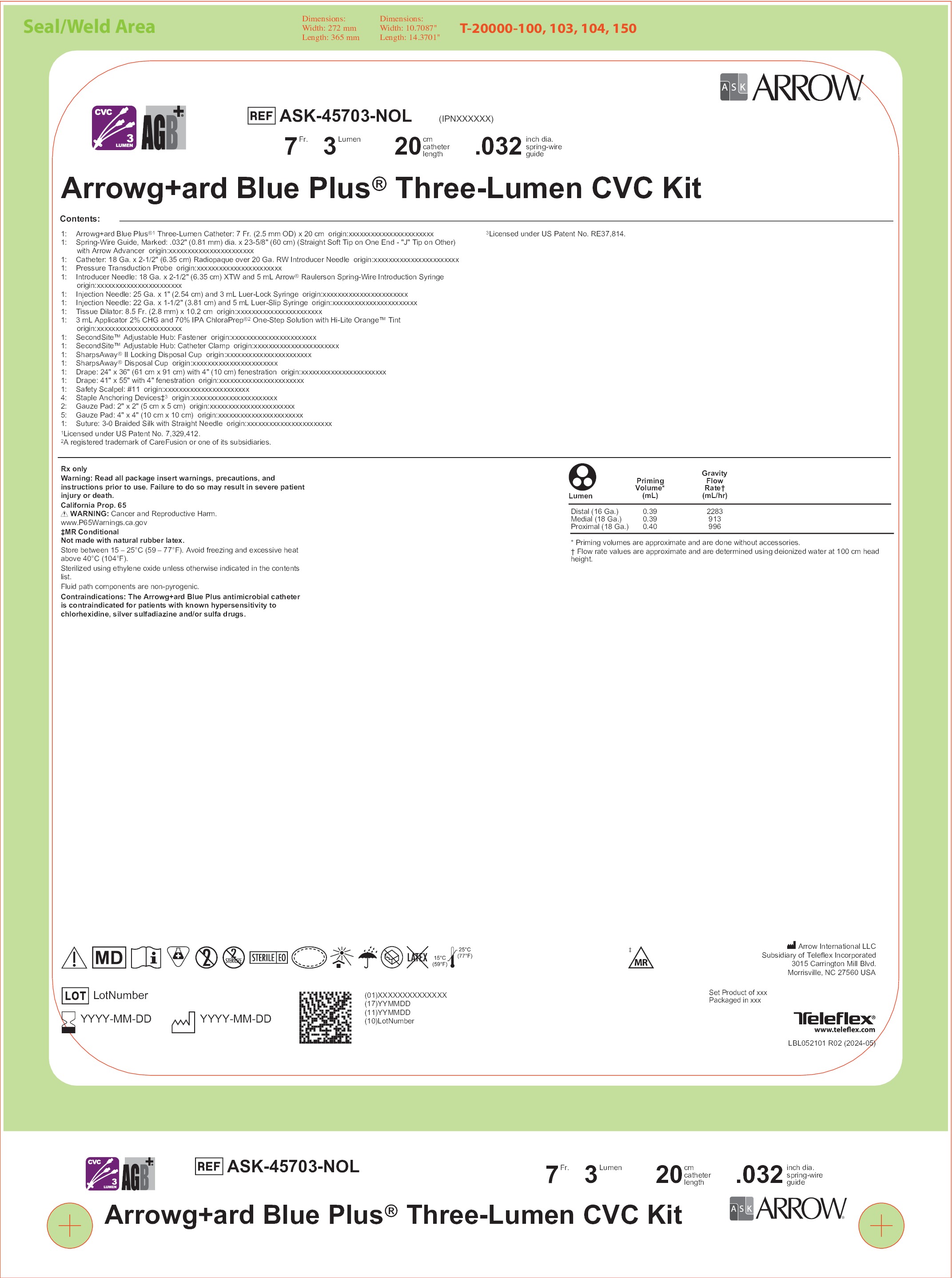

ARROWg+ard Blue PLUS® Multi-Lumen Central Venous Catheterization Kit
SKU / Article #: ASK-45703-NOL
Quantity Component Description
1 Multi-Lumen Indwelling Catheter: 7 Fr. x 20 cm Radiopaque Polyurethane with Blue FlexTip®, ARROWg+ard Blue PLUS® Antimicrobial Surface Treatment1, Extension Line Clamps, Injection Site Caps
1 Spring-Wire Guide, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Pressure Transduction Probe
1 Injection Needle: 25 Ga. x 1" (2.54 cm) and 3 mL Luer-Lock Syringe
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®2 One-Step Solution with Hi-Lite Orange Tint (non-sterile solution)
1 SecondSite Adjustable Hub: Fastener
1 SecondSite Adjustable Hub: Catheter Clamp
1 SharpsAway II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Drape: 24" x 36" (61 cm x 91 cm) with 4" (10 cm) fenestration
1 Drape: 41" x 55" with 4" fenestration
1 Safety Scalpel: #11
1 Staple Anchoring Devices‡3
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Braided Silk with Straight Needle
1 Licensed under US Patent Nos. 6,706,024, 6,872,195 and 7,329,412.
2 A registered trademark of CareFusion or one of its subsidiaries.
3 Licensed under US Patent No. RE37,814.

Documents

  • C 15802 101a

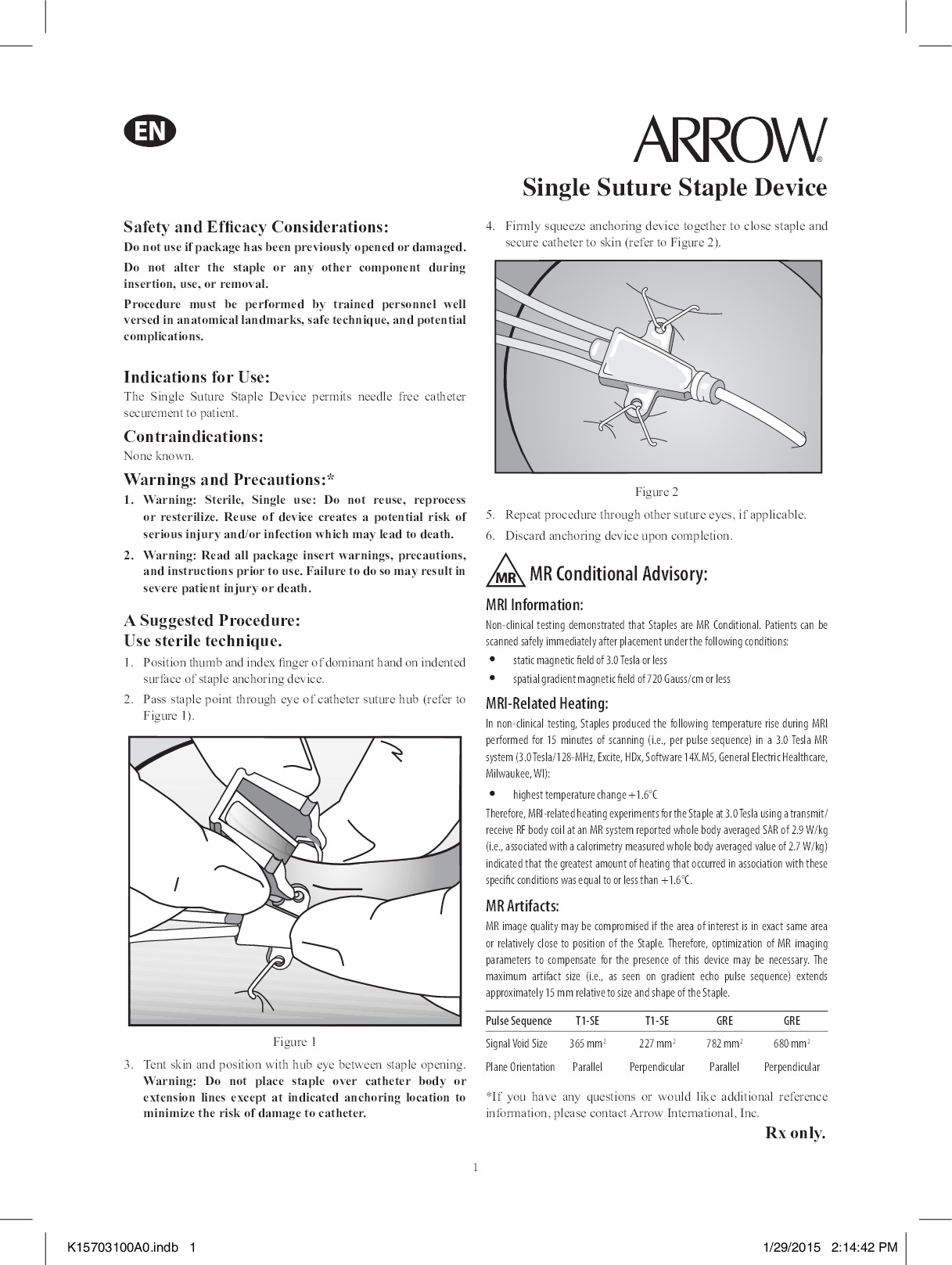

  • K 15703 100a

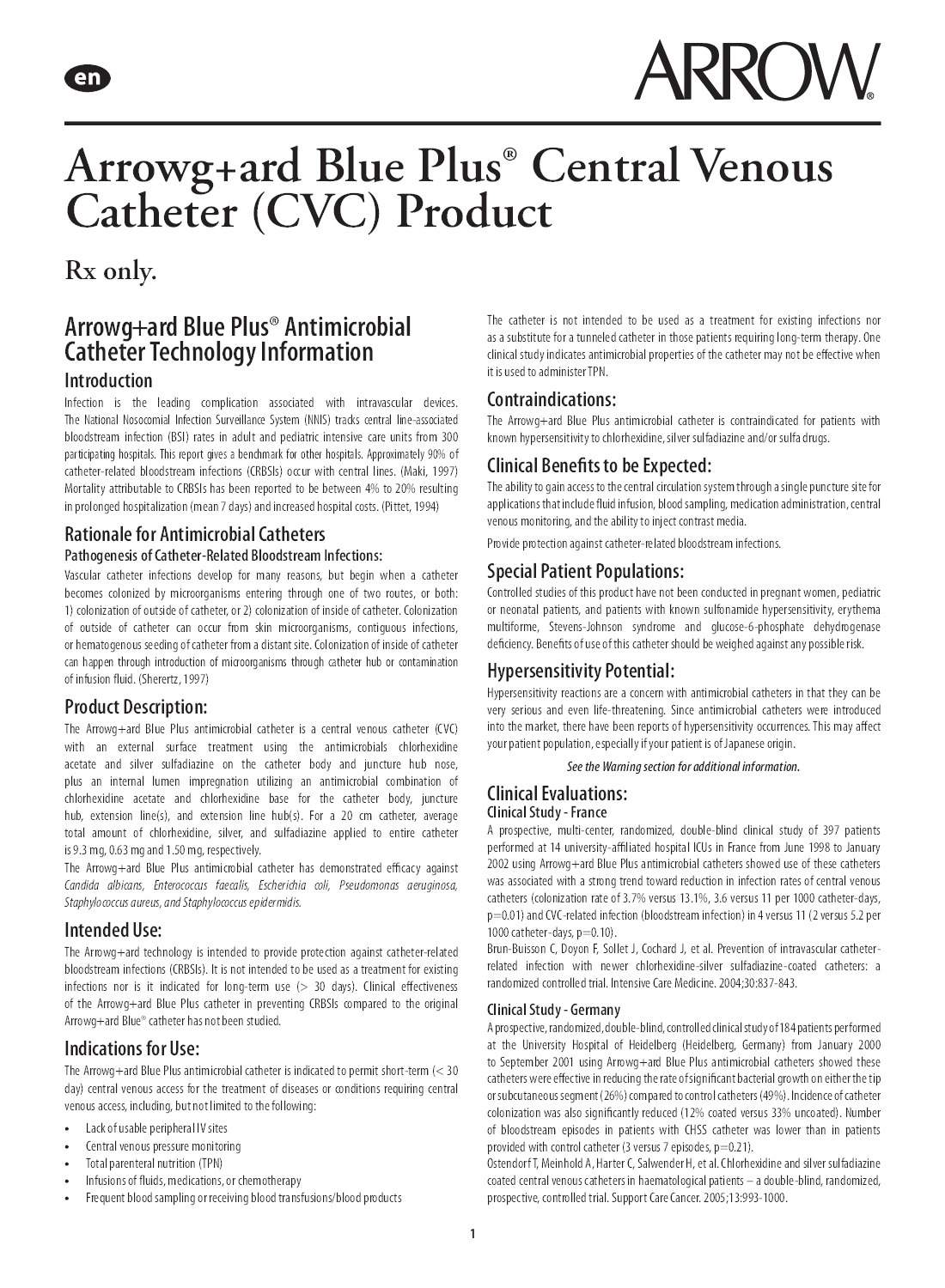

  • Il 45703 110a

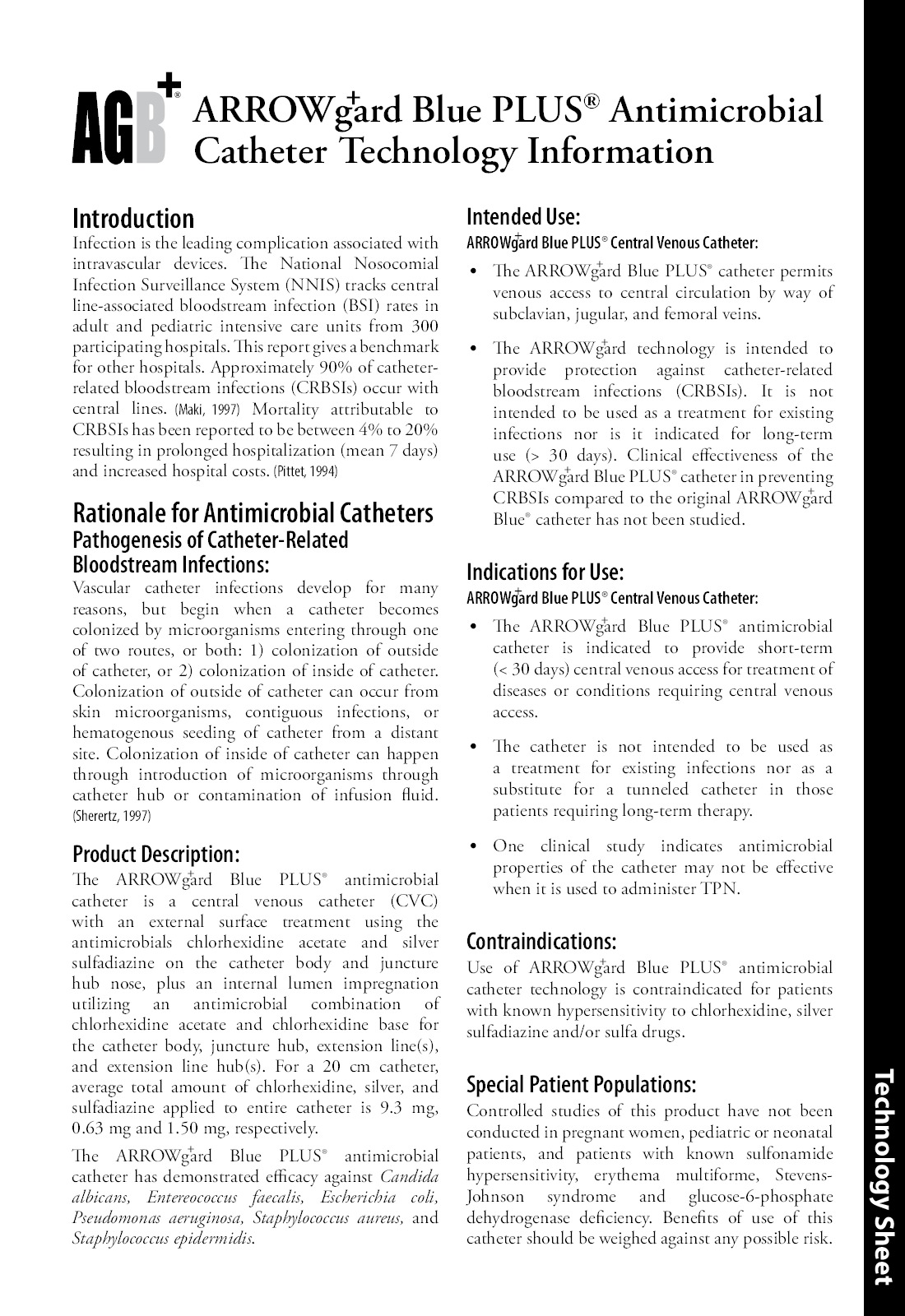

  • A 40000 100d
  • P 02000 100
Scroll to View More
  • C 15802 101a
  • K 15703 100a
  • A 40000 100d
Scroll to View More
  • Il 45703 110a
  • P 02000 100
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
