CAN-42703-HUQ

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Arrowg+ard Blue Plus® Three-Lumen CVC Kit

PI CVC KIT: 3L 7 FR X 16CM AGB+

SKU / Article #: CAN-42703-HUQ

Highlights

  • Antimicrobial: Arrowg+ard Blue Plus*
  • Sharps Safety

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • ±Precaution: Contains Phthalate: DEHP

Sales Quantity/Case: 5

Pressure Injectable Arrowg+ard Blue Plus® Three-Lumen CVC Kit
SKU / Article #: CAN-42703-HUQ
Quantity Component Description
1 Arrowg+ard Blue Plus®1 Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 16 cm, Pressure Injectable
1 Spring-Wire Guide, Nitinol, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow® GlideWheel™ Wire Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Filter Needle: 18 Ga. TW x 1-1/2" (3.81 cm) with Blunt Fill Tip
1 Injection Needle: 25 Ga. x 1-1/2" (3.81 cm)
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
2 Syringe: 5 mL Luer-Lock
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Towel
1 Safety Scalpel: #11
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Dressing: I.V. Advanced 8.5 cm x 11.5 cm
1 Transducer Cover: 14 cm x 147 cm
1 Suture: 3-0 Nylon with Straight Needle
1 Tubing±: 20" (50 cm) Extension
3 Valve: MicroCLAVE™2 Neutral Displacement Connector
1 HemoHopper® Fluid Receptacle
1 Licensed under US Patent No. 7,329,412.
2 A trademark of ICU Medical, Inc.

Documents

  • K 45703 118a

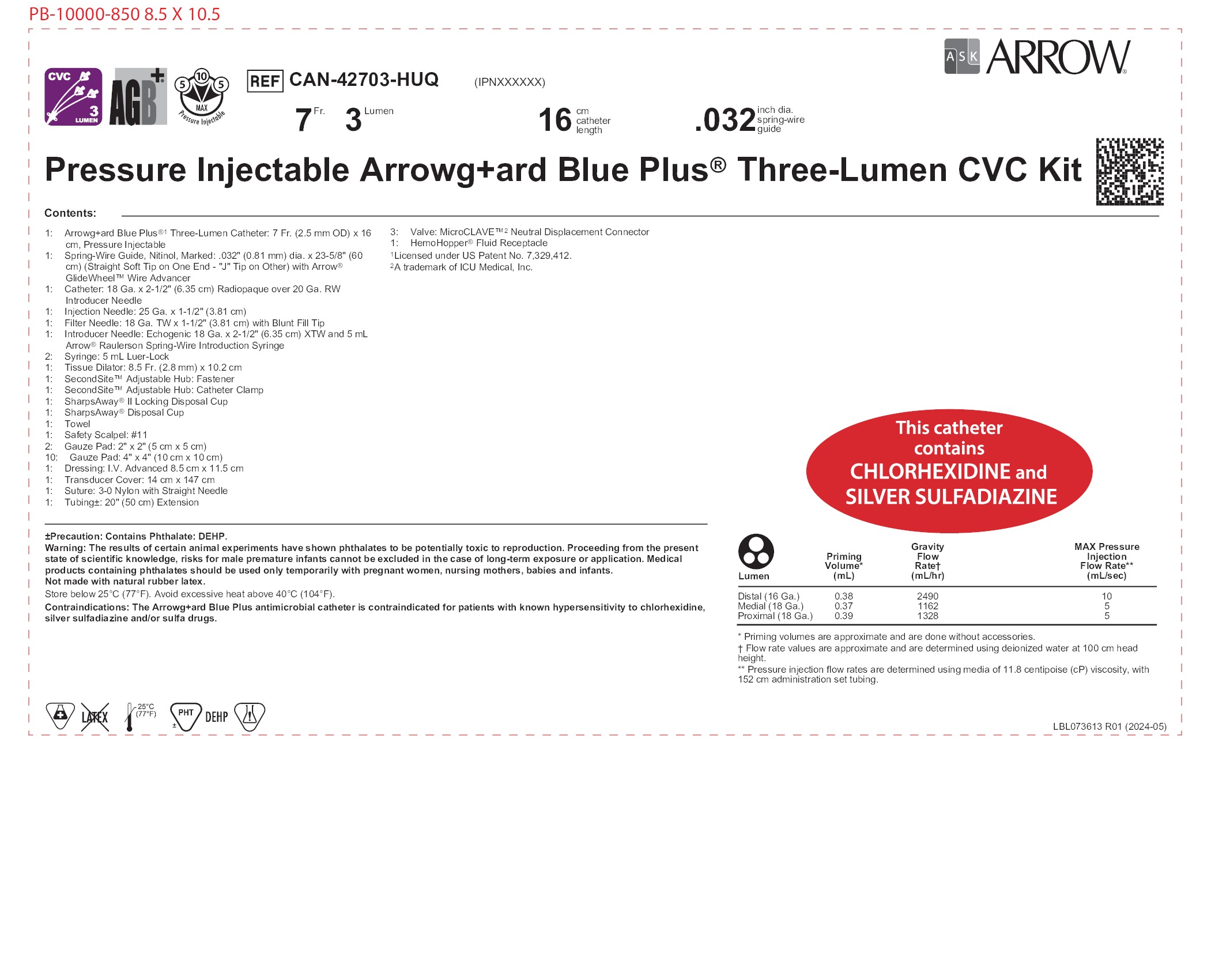

  • Lbl073613
  • M 05500 103a
  • S 45703 128a
Scroll to View More
  • K 45703 118a
  • M 05500 103a
  • S 45703 128a
Scroll to View More
  • Lbl073613
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
