CDC-45703-PA1A

Representative photo(s): actual product specifications may vary from that shown in the photo

Arrowg+ard Blue PLUS® Pressure Injectable Multi-Lumen CVC Kit

PI CVC KIT: 3-L 7 FR X 20 CM AGB

SKU / Article #: CDC-45703-PA1A

Highlights

  • Antimicrobial: Arrowg+ard Blue Plus*
  • Sharps Safety

Contraindications & Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • Includes Lidocaine

Sales Quantity/Case: 5

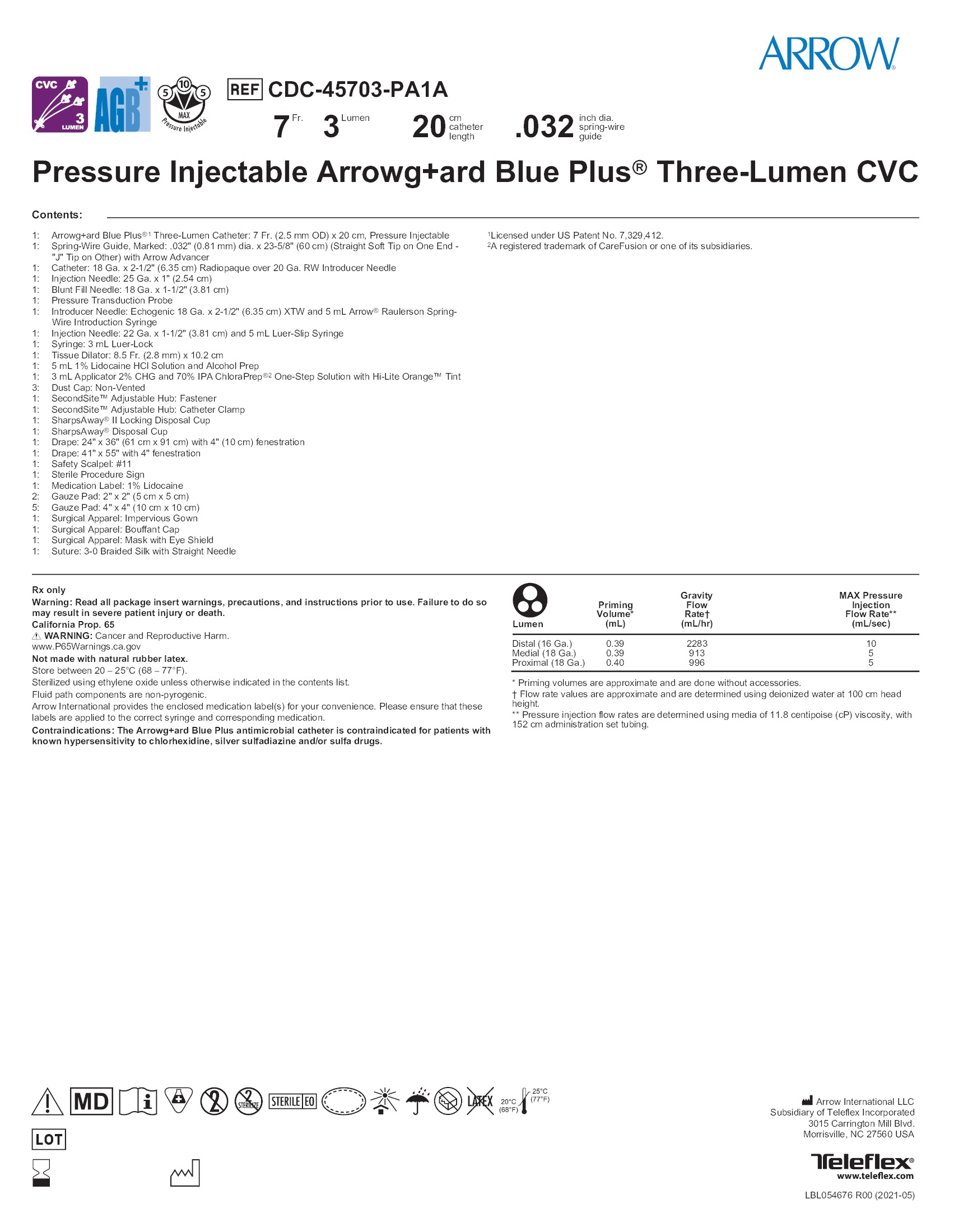

Arrowg+ard Blue PLUS® Pressure Injectable Multi-Lumen CVC Kit
SKU / Article #: CDC-45703-PA1A
Quantity Component Description
1 Arrowg+ard Blue Plus®1 Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 20 cm, Pressure Injectable
1 Spring-Wire Guide, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®2 One-Step Solution with Hi-Lite Orange Tint
3 Dust Cap: Non-Vented
1 SecondSite Adjustable Hub: Fastener
1 SecondSite Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Drape: 24" x 36" (61 cm x 91 cm) with 4" (10 cm) fenestration
1 Drape: 41" x 55" with 4" fenestration
1 Safety Scalpel: #11
1 Flow Rate Information Card with Injection Log
1 Sterile Procedure Sign
1 Medication Label: 1% Lidocaine
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Surgical Apparel: Impervious Gown
1 Surgical Apparel: Bouffant Cap
1 Surgical Apparel: Mask with Eye Shield
1 Suture: 3-0 Braided Silk with Straight Needle
1 Licensed under US Patent No. 7,329,412.
2 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • C 45703 104a
  • K 45703 115b
  • K 07800 112
  • C 45703 110g
Scroll to View More
  • C 45703 104a
  • K 45703 115b
  • K 07800 112
Scroll to View More
  • C 45703 110g
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
