EU-05052-HPMSB

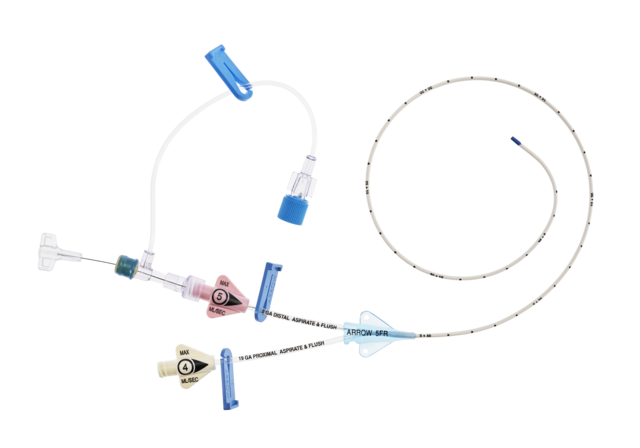

  • Va picc 2l unp pi 5fr 40cm

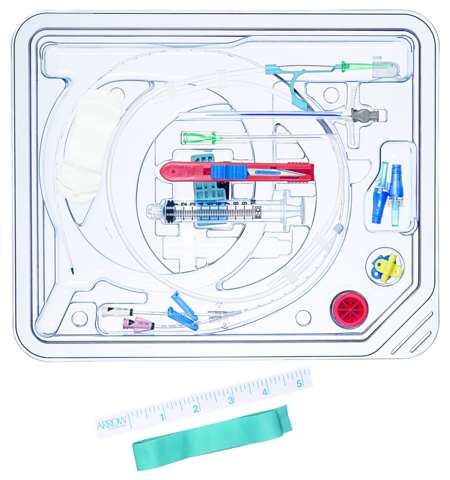

  • Eu 05052 hp arrow pressure injectable picc basic nursing kit griplock

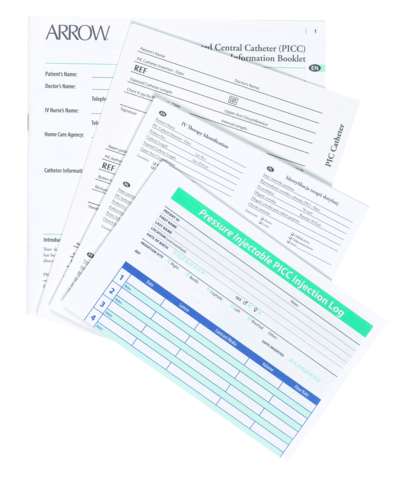

  • Eu 05052 hp arrow pressure injectable picc papers

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Two-Lumen PICC

2-L PI PICC KIT: 5 FR X 50 CM

SKU / Article #: EU-05052-HPMSB

Highlights

  • Sharps Safety
  • CE Mark

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable Two-Lumen PICC
SKU / Article #: EU-05052-HPMSB
Quantity Component Description
1 Two Lumen Catheter: 5 Fr. (1.81 mm OD) x 50 cm, Pressure Injectable, T-Port Connector, Blue FlexTip®, Contamination Guard and Placement Wire
1 Sheath: 14 Ga. x 2-3/4" (7 cm) Radiopaque Peel-Away over 5 Fr. Dilator
1 Spring-Wire Guide: .018" (0.46 mm) dia. x 13-1/8" (33 cm) (Straight Soft Tip on Both Ends)
1 Catheter: 22 Ga. x 1-3/4" (4.45 cm) Radiopaque over 25 Ga. RW Introducer Needle
1 Filter Needle: 18 Ga. TW x 1-1/2" (3.81 cm) with Blunt Fill Tip
1 Introducer Needle: 21 Ga. x 1-1/2" (3.81 cm) TW
1 Injection Needle: Eclipse™1 22 Ga. x 1-1/2" (3.81 cm) RW
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Injection Needle: Eclipse™1 25 Ga. x 1" (2.54 cm) RW and 3 mL Luer-Lock Syringe
1 Syringe: 10 mL Luer-Lock
1 Syringe: 10 mL Luer-Slip
1 Skin Protectant Prep
2 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Catheter Trimmer
1 Towel: 24" x 36" (61 cm x 91 cm)
1 Maximal Barrier Drape™ with two 13 cm (5") x 15 cm (6") fenestrations
1 Towel
1 Safety Scalpel: #11
1 Patient ID Card
1 Sterile Procedure Sign
1 Patient Information Booklet
1 Chart Sticker
1 PICC Line Insertion Checklist
2 Paper Tape Measure
1 Tourniquet
5 Gauze Pad: 2" x 2" (5 cm x 5 cm)
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Dressing: Tegaderm®2 15.5 cm x 10 cm
1 Surgical Apparel: Impervious Gown
1 Dressing: STATLOCK®3 Catheter Stabilization Device
1 Surgical Apparel: Bouffant Cap
1 Surgical Apparel: Mask with Eye Shield
1 Surgical Apparel: Mask
1 Tape: Steri-Strip®2
1 HemoHopper® Fluid Receptacle
1 A trademark of Becton, Dickinson and Company.
2 A registered trademark of 3M Company.
3 A registered trademark of C. R. Bard, Inc.

Documents

  • Sz 00109 101c
  • Sz 00109 102c
  • K 01552 107b
  • A 06041 108e
  • A 06041 116b
  • Lbl063133
  • M 05500 102a
Scroll to View More
  • Sz 00109 101c
  • Sz 00109 102c
  • K 01552 107b
  • A 06041 108e
  • A 06041 116b
  • M 05500 102a
Scroll to View More
  • Lbl063133
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
