Pressure Injectable Three-Lumen CVC

PI CVC KIT: 3-LUMEN 7 FR X 20 CM

SKU / Article #: EU-15703-HPSK

Highlights

  • Sharps Safety
  • CE Mark

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable Three-Lumen CVC
SKU / Article #: EU-15703-HPSK
Quantity Component Description
1 Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 20 cm, Pressure Injectable
1 Spring-Wire Guide, Nitinol, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow® GlideWheel™ Wire Advancer with ECG Mark
1 Filter Needle: 18 Ga. TW x 1-1/2" (3.81 cm) with Blunt Fill Tip
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW
1 Injection Needle: Eclipse™1 25 Ga. x 1" (2.54 cm)
1 Pressure Transduction Probe
1 Syringe: 3 mL Luer-Lock
1 Syringe: 10 mL Luer-Slip
1 Arrow® Raulerson Spring-Wire Introduction Syringe: 5 mL
1 Tissue Dilator: 8 Fr. (2.7 mm) x 9 cm
3 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 Drape: 47-1/4" x 59" (120 cm x 150 cm) with 4" (10 cm) fenestration, with adhesive
1 Safety Scalpel: #11
3 Prep Sponge Swab
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Dressing: Tegaderm®2 I.V. Advanced 3-1/4" x 4-1/2" (8.5 cm x 11.5 cm)
1 Dressing: GRIP-LOK®3 Catheter Fixation Device
1 A trademark of Becton, Dickinson and Company.
2 A registered trademark of 3M Company.
3 A registered trademark of TIDI.

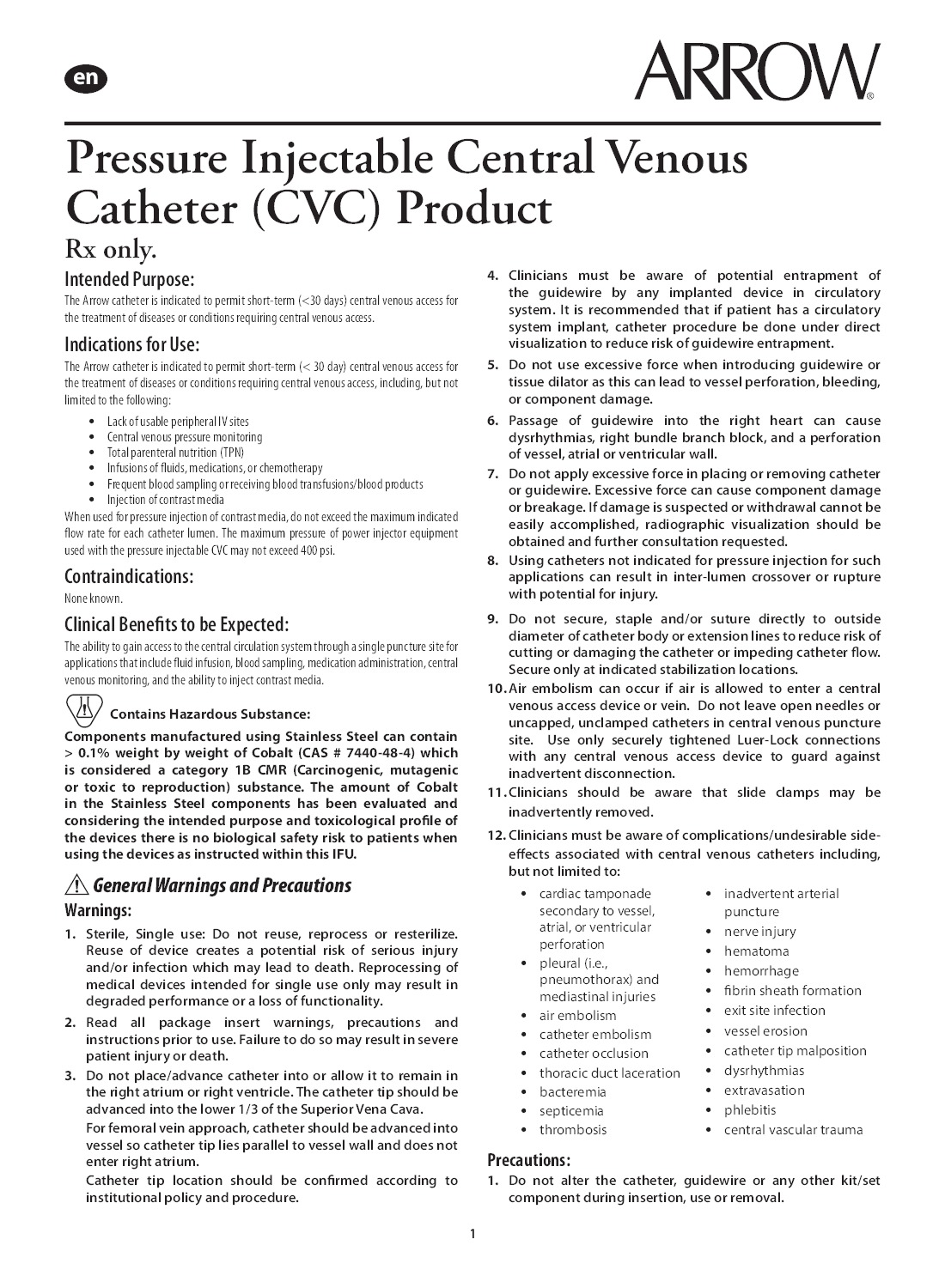

Documents

  • M 05500 103b
  • S 15703 123b
  • S 15703 124b
  • Sz 00109 102c
  • Sz 00400 100b
Scroll to View More
  • M 05500 103b
  • S 15703 123b
  • S 15703 124b
  • Sz 00109 102c
  • Sz 00400 100b
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
