EU-24063-HP

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

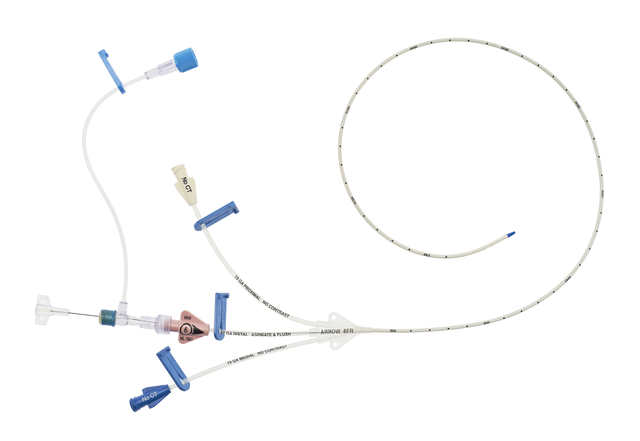

Pressure Injectable Three-Lumen PICC

PICC KIT: 6 FR X 40 CM

SKU / Article #: EU-24063-HP

Highlights

  • Sharps Safety
  • CE Mark

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable Three-Lumen PICC
SKU / Article #: EU-24063-HP
Quantity Component Description
1 Three Lumen Catheter: 6 Fr. (2.14 mm OD) x 40 cm, Pressure Injectable, T-Port Connector, Blue FlexTip®, Contamination Guard and Placement Wire
1 GlideThru™ Peel-Away Sheath: 6 Fr. x 2-3/4" (7 cm) Radiopaque over 6 Fr. Dilator
1 Spring-Wire Guide, Nitinol, Marked: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - Straight Stiff Tip on Other) with Arrow Advancer
1 Safety Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Syringe: 10 mL Luer-Lock
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 Catheter Trimmer
1 Safety Scalpel: #11
1 Patient ID Card
1 Patient Information Booklet
1 Chart Sticker
2 Paper Tape Measure
1 Tourniquet
1 Dressing: GRIP-LOK®1 Catheter Fixation Device
3 Valve: MicroCLAVE™2 Neutral Displacement Connector
1 A registered trademark of TIDI.
2 A trademark of ICU Medical, Inc.

Documents

  • K 01552 107b
  • Lbl056490
  • N 04018 107c
  • Sz 00400 103a
  • A 06041 108e
  • A 06041 116b
  • Sz 45703 114e
Scroll to View More
  • K 01552 107b
  • N 04018 107c
  • Sz 00400 103a
  • A 06041 108e
  • A 06041 116b
  • Sz 45703 114e
Scroll to View More
  • Lbl056490
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
