EU-45854-HPSKM

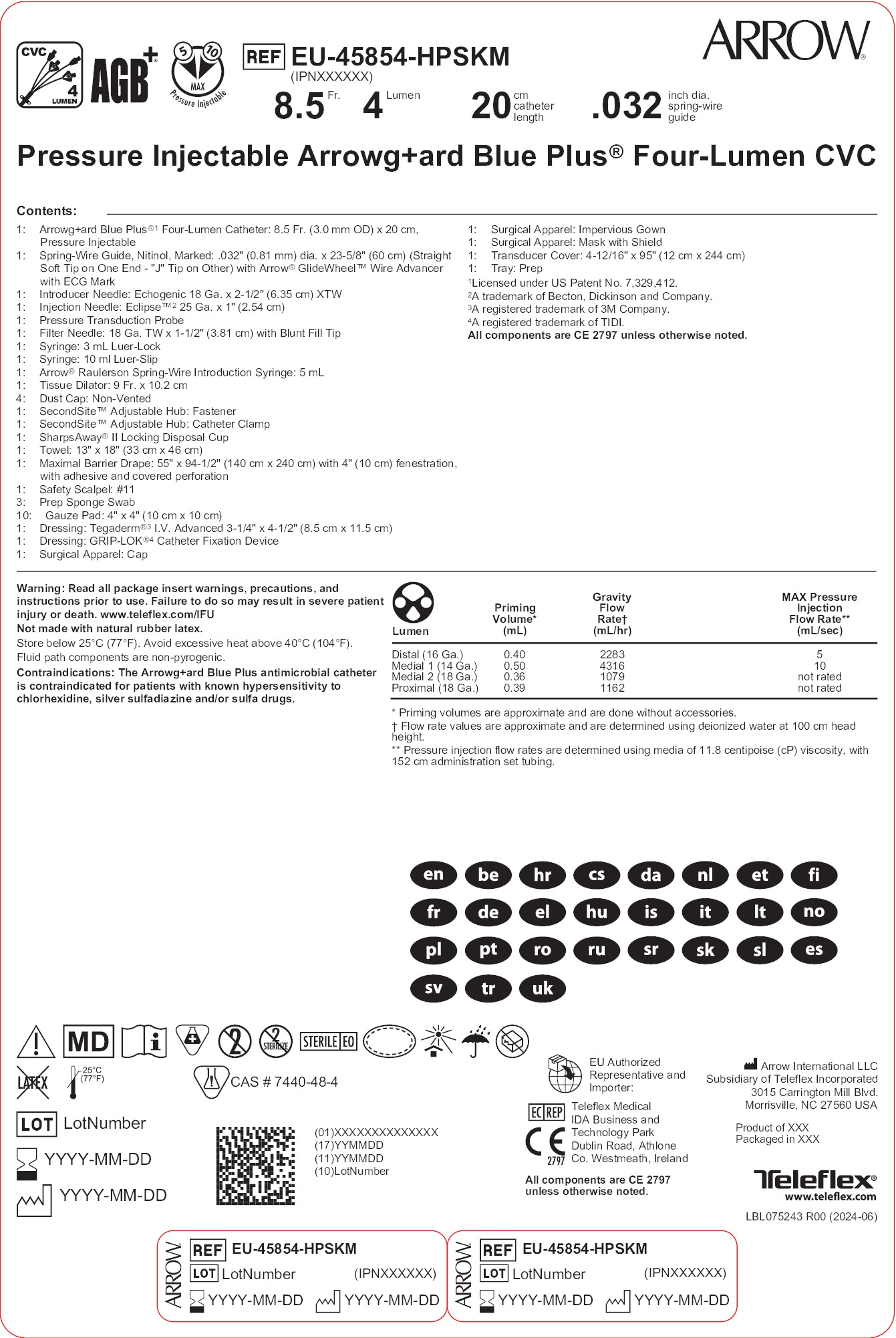

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Arrowg+ard Blue Plus® Four-Lumen CVC

PI CVC KIT: 4-LUMEN 8.5 FR X 20 CM

SKU / Article #: EU-45854-HPSKM

Highlights

  • Antimicrobial: Arrowg+ard Blue Plus*
  • Sharps Safety
  • CE Mark

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable Arrowg+ard Blue Plus® Four-Lumen CVC
SKU / Article #: EU-45854-HPSKM
Quantity Component Description
1 Arrowg+ard Blue Plus®1 Four-Lumen Catheter: 8.5 Fr. (3.0 mm OD) x 20 cm, Pressure Injectable
1 Spring-Wire Guide, Nitinol, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow® GlideWheel™ Wire Advancer with ECG Mark
1 Filter Needle: 18 Ga. TW x 1-1/2" (3.81 cm) with Blunt Fill Tip
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW
1 Injection Needle: Eclipse™2 25 Ga. x 1" (2.54 cm)
1 Pressure Transduction Probe
1 Syringe: 3 mL Luer-Lock
1 Syringe: 10 mL Luer-Slip
1 Arrow® Raulerson Spring-Wire Introduction Syringe: 5 mL
1 Tissue Dilator: 9 Fr. x 10.2 cm
4 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 Towel: 13" x 18" (33 cm x 46 cm)
1 Maximal Barrier Drape: 55" x 94-1/2" (140 cm x 240 cm) with 4" (10 cm) fenestration, with adhesive and covered perforation
1 Safety Scalpel: #11
3 Prep Sponge Swab
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Dressing: Tegaderm®3 I.V. Advanced 3-1/4" x 4-1/2" (8.5 cm x 11.5 cm)
1 Dressing: GRIP-LOK®4 Catheter Fixation Device
1 Surgical Apparel: Cap
1 Surgical Apparel: Impervious Gown
1 Surgical Apparel: Mask with Shield
1 Transducer Cover: 4-12/16" x 95" (12 cm x 244 cm)
1 Tray: Prep
1 Licensed under US Patent No. 7,329,412.
2 A trademark of Becton, Dickinson and Company.
3 A registered trademark of 3M Company.
4 A registered trademark of TIDI.

Documents

  • M 05500 103b
  • S 45703 129b
  • S 45703 130b
  • Sz 00109 102c
  • Sz 00400 100b
Scroll to View More
  • M 05500 103b
  • S 45703 129b
  • S 45703 130b
  • Sz 00109 102c
  • Sz 00400 100b
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
