IMID-32041-MAX

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

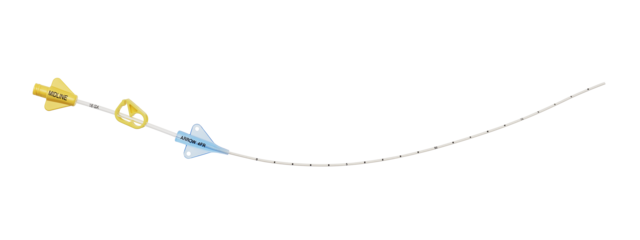

Pressure Injectable One-Lumen Midline

PI MIDLINE 1L: 4FR X 20CM

SKU / Article #: IMID-32041-MAX

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.
  • ǂǂǂMR Safe

Sales Quantity/Case: 5

Pressure Injectable One-Lumen Midline
SKU / Article #: IMID-32041-MAX
Quantity Component Description
1 TaperFree® Catheter‡‡‡: 4 Fr.(1.45 mm OD) x 20 cm Pressure Injectable Radiopaque Polyurethane with Extension Line Clamp and Contamination Guard
1 GlideThru™ Peel-Away Sheath: 4 Fr. x 2-3/4" (7 cm) Radiopaque over 4 Fr. Dilator
1 Spring-Wire Guide, Nitinol, Marked: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - Straight Stiff Tip on Other) with Arrow Advancer
1 Filter Needle: 18 Ga. TW x 1-1/2" (3.81 cm) with Blunt Fill Tip
1 Introducer Needle: 21 Ga. x 1-1/2" (3.81 cm) TW
1 Injection Needle: Eclipse™1 25 Ga. x 1" (2.54 cm)
1 Safety Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Syringe: 10 mL Luer-Lock
1 Syringe: 3 mL Luer-Lock
1 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SecondSite™ Adjustable Hub: Fastener
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Catheter Trimmer
1 Towel: 24" x 36" (61 cm x 91 cm)
1 Maximal Barrier Drape™ with two 13 cm (5") x 15 cm (6") fenestrations
1 Towel
1 Safety Scalpel: #11
1 Sterile Procedure Sign
1 Overbed Sign
1 Patient ID Card
1 Checklist/CLIP Sheet
1 Patient Information Booklet
2 Paper Tape Measure
1 Tourniquet
5 Gauze Pad: 2" x 2" (5 cm x 5 cm)
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Surgical Apparel: Impervious Gown
1 Dressing: I.V. Advanced 8.5 cm x 11.5 cm
1 Transducer Cover with Gel and Rubber Bands
1 Surgical Apparel: Bouffant Cap
1 Dressing: STATLOCK®2 PICC Plus Catheter Stabilization Device
1 Surgical Apparel: Mask with Eye Shield
1 Surgical Apparel: Mask
1 Tape: Steri-Strip®3
1 Valve: MicroCLAVE™4 Neutral Displacement Connector
1 A trademark of Becton, Dickinson and Company.
2 A registered trademark of C. R. Bard, Inc.
3 A registered trademark of 3M Company.
4 A trademark of ICU Medical, Inc.

Documents

  • A 02041 400a
  • K 45703 118a

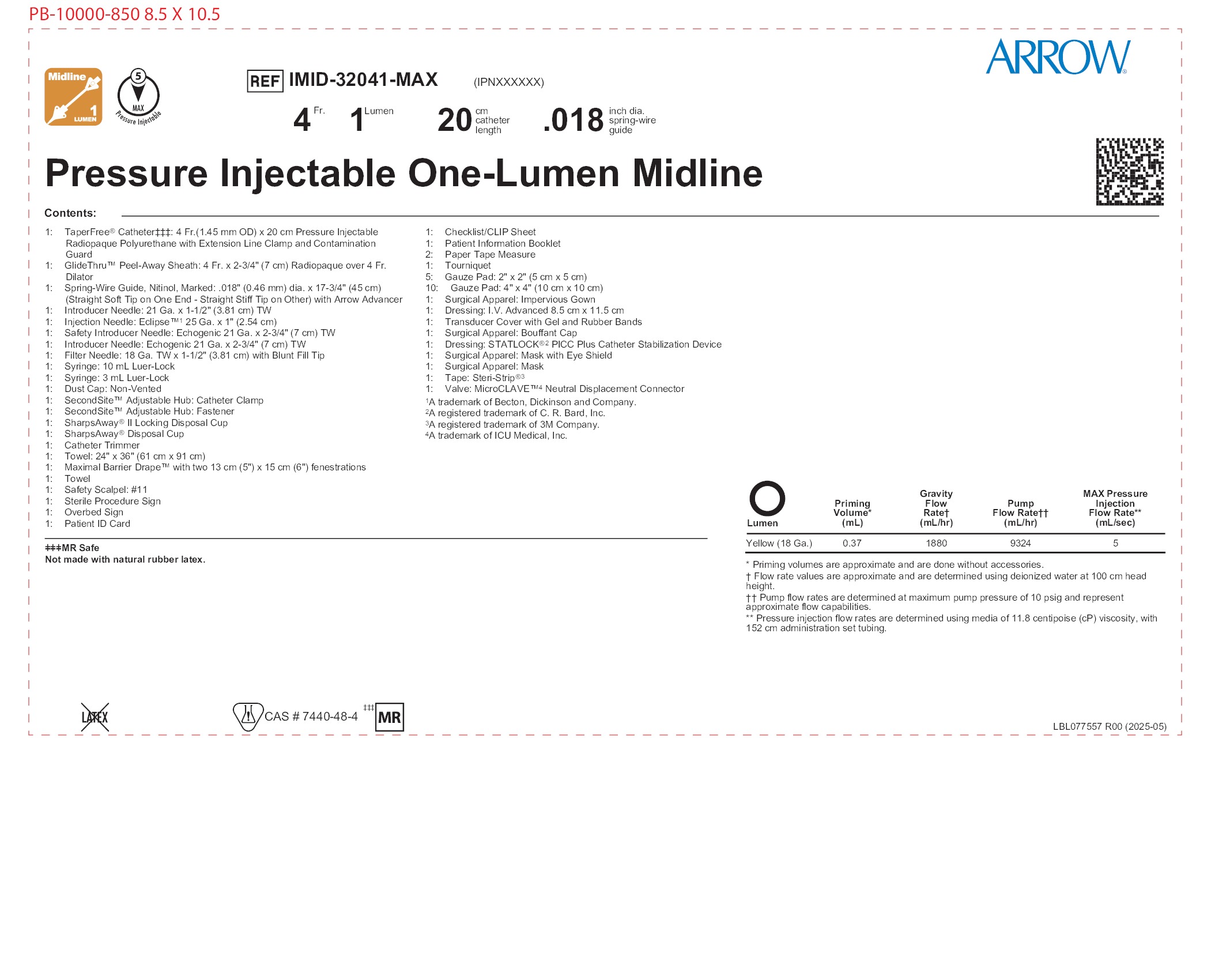

  • Lbl077557
  • M 05500 105a
  • P 15552 300d
Scroll to View More
  • A 02041 400a
  • K 45703 118a
  • M 05500 105a
  • P 15552 300d
Scroll to View More
  • Lbl077557
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
