MPH-15703-JA

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

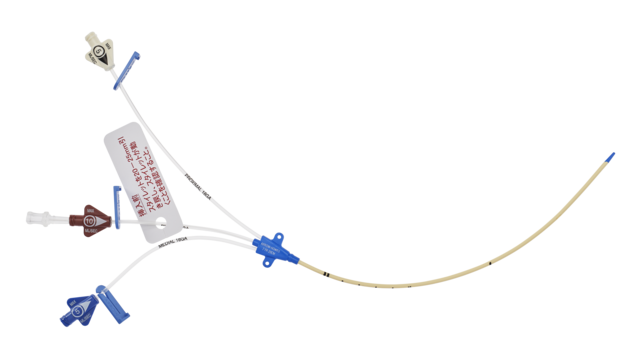

Pressure Injectable Three-Lumen CVC

PI CVC KIT: 3-L 7FR X 20CM Microintroduc

SKU / Article #: MPH-15703-JA

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 10

Pressure Injectable Three-Lumen CVC
SKU / Article #: MPH-15703-JA
Quantity Component Description
1 Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 20 cm, Pressure Injectable, Stylet
1 Spring-Wire Guide, Nitinol, Marked: .018" (0.46 mm) dia. x 23-5/8" (60 cm) (Angled Soft Tip on One End - Straight Stiff Tip on Other) with Arrow Advancer and hub
1 Catheter: 20 Ga. x 1-3/4" (4.45 cm) Radiopaque over 22 Ga. TW Introducer Needle
1 Injection Needle: 25 Ga. x 1-1/2" (3.81 cm)
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm)
1 Introducer Needle: Echogenic 22 Ga. (0.72 mm) x 2-3/4" (7 cm) XTW
1 Introducer Needle: Echogenic 22 Ga. (0.72 mm) x 1-3/8" (3.5 cm) XTW
1 Syringe: 10 mL Luer-Slip
1 Syringe: 5 mL Luer-Slip
1 Syringe: 2 mL Luer-Slip
1 Tissue Dilator: 8 Fr x 9.7 cm
3 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 Medicine Cup: 60 mL
1 SharpsAway® Disposal Cup
1 Drape: 35" x 50" (89 cm x 127 cm) with 4" (10 cm) fenestration, with adhesive
1 Needle Holder
1 Scalpel: #11
2 Stopcock: 4-way
1 Prep Sponge Swab
6 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Dressing: OpSite®1 4-3/4" x 4" (12 cm x 10 cm)
1 Suture: 3-0 Silk with Curved Needle
1 Tray: Prep
1 Y-hub
2 Guidewire Introducer
1 A registered trademark of T.J. Smith & Nephew, Limited.

Documents

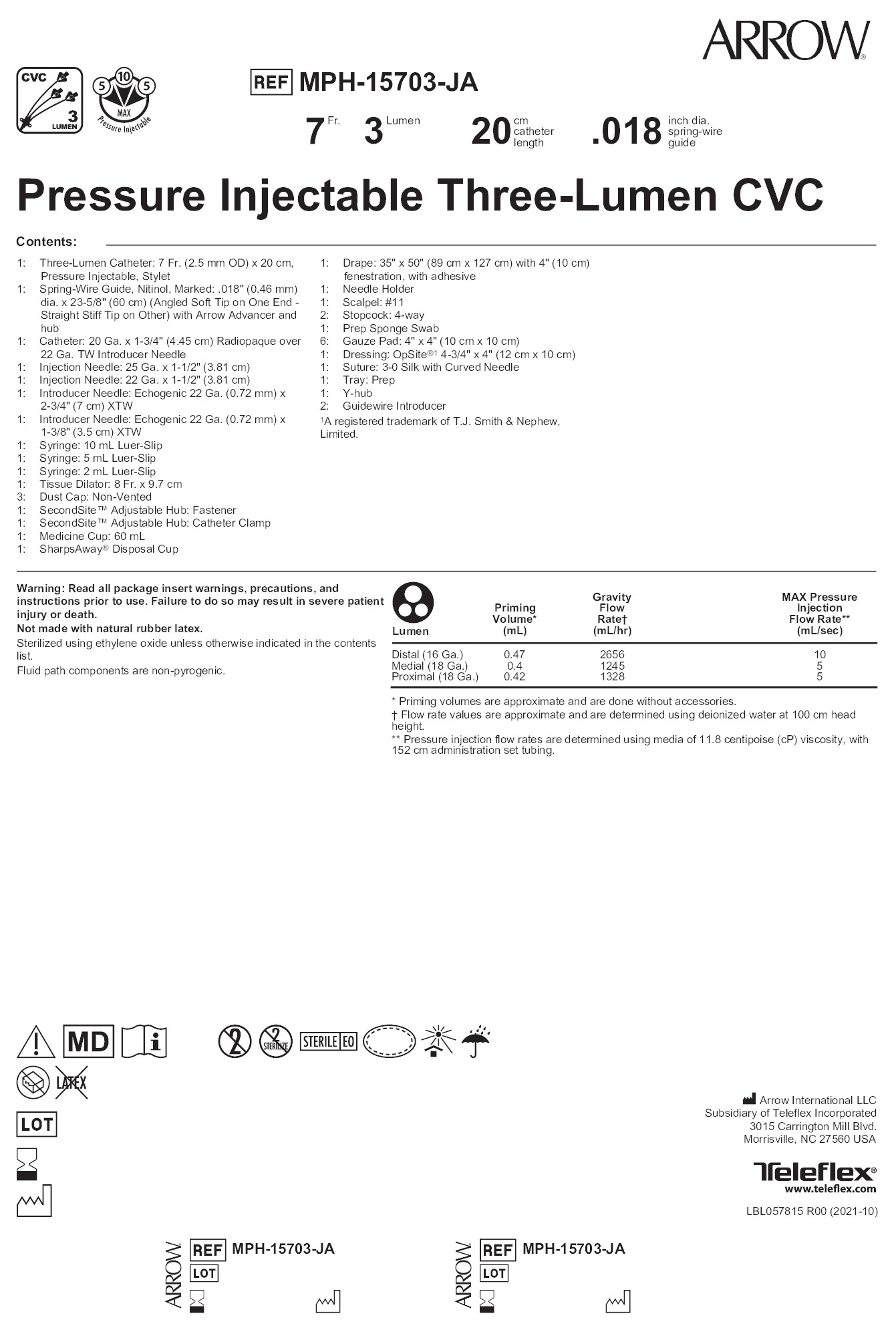

  • Lbl057815
  • Sz 15703 158a
Scroll to View More
  • Lbl057815
Scroll to View More
  • Sz 15703 158a
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
