SA-12802

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Two-Lumen CVC

CVC SET: 2-LUMEN 8FR X 16CM

SKU / Article #: SA-12802

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 10

Two-Lumen CVC
SKU / Article #: SA-12802
Quantity Component Description
1 Two-Lumen Catheter: 8 Fr. (2.8 mm OD) x 16 cm
1 Spring-Wire Guide, Nitinol, Marked: .032" (0.81 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW
1 Pressure Transduction Probe
1 Arrow® Raulerson Spring-Wire Introduction Syringe: 5 mL
1 Tissue Dilator: 9 Fr. (3.0 mm) x 10.2 cm
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 Drape: 29-1/2" x 35-1/2" (75 cm x 90 cm) with 4" (10 cm) fenestration, with adhesive
2 Drape: 19-5/8" x 29-1/2" (50 cm x 75 cm) with adhesive
1 Safety Scalpel: #11
2 Prep Sponge Swab
2 Valve: MicroCLAVE™1 Neutral Displacement Connector
1 A trademark of ICU Medical, Inc.

Documents

  • S 15703 116c
  • Sz 45703 114d

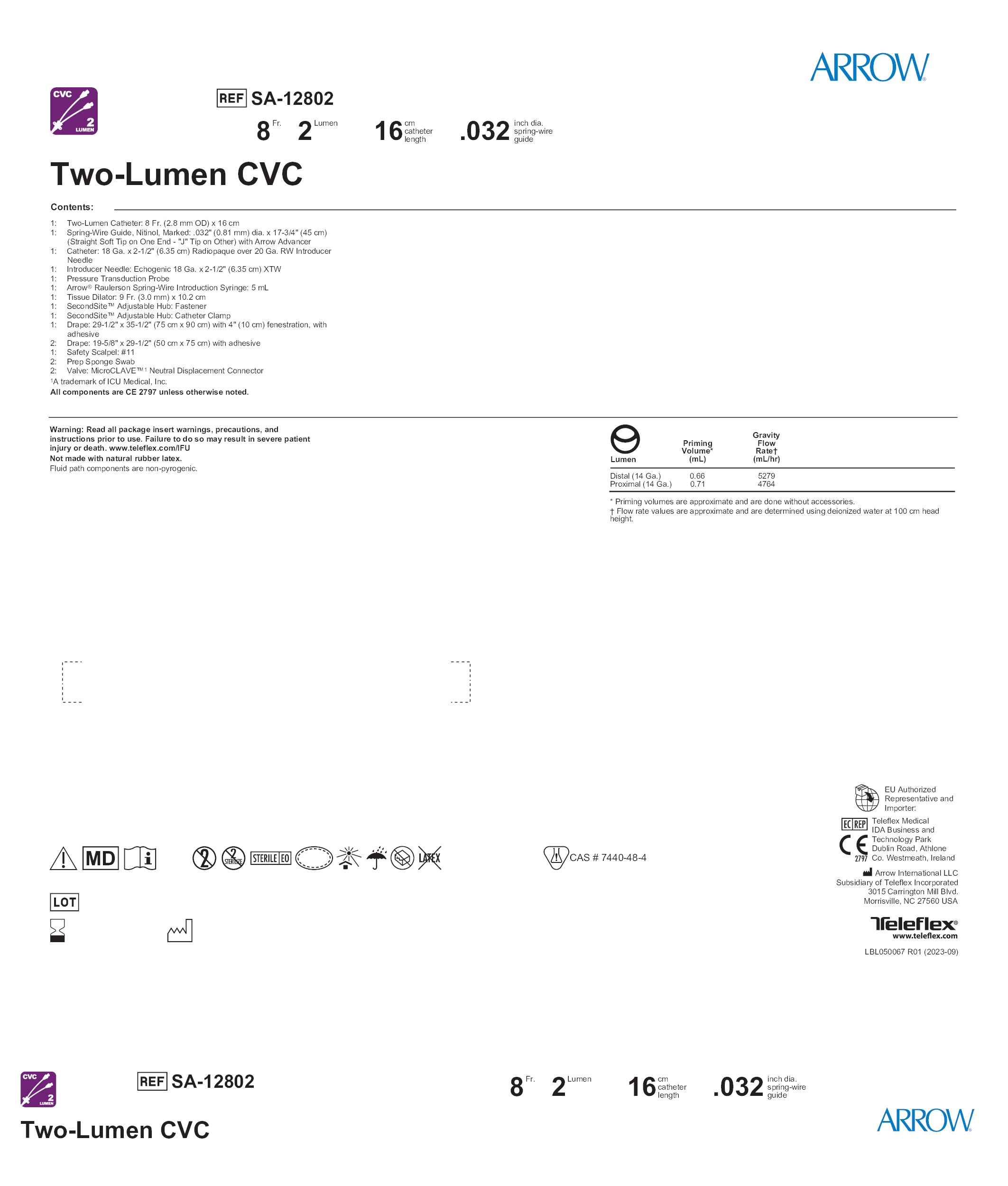

  • Lbl050067
Scroll to View More
  • S 15703 116c
  • Sz 45703 114d
Scroll to View More
  • Lbl050067
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
