SA-15403

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Three-Lumen CVC

CVC SET: 3-LUMEN 4FR X 8CM

SKU / Article #: SA-15403

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Three-Lumen CVC
SKU / Article #: SA-15403
Quantity Component Description
1 Three-Lumen Catheter: 4 Fr. (1.5 mm OD) x 8 cm
1 Spring-Wire Guide, Nitinol, Marked: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 22 Ga. x 1-3/4" (4.45 cm) Radiopaque over 25 Ga. RW Introducer Needle
1 Introducer Needle: 20 Ga. x 1-1/2" (4 cm) XTW
1 Syringe: 5 mL Luer-Slip
1 Tissue Dilator: 5 Fr. (1.8 mm) x 7.5 cm
1 Tissue Dilator: 5 Fr. (1.8 mm) x 4.1 cm
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SecondSite™ Adjustable Hub: Fastener
1 Safety Scalpel: #11
3 Valve: MicroCLAVE™1 Neutral Displacement Connector
1 A trademark of ICU Medical, Inc.

Documents

  • S 15703 116c
  • Sz 45703 114d

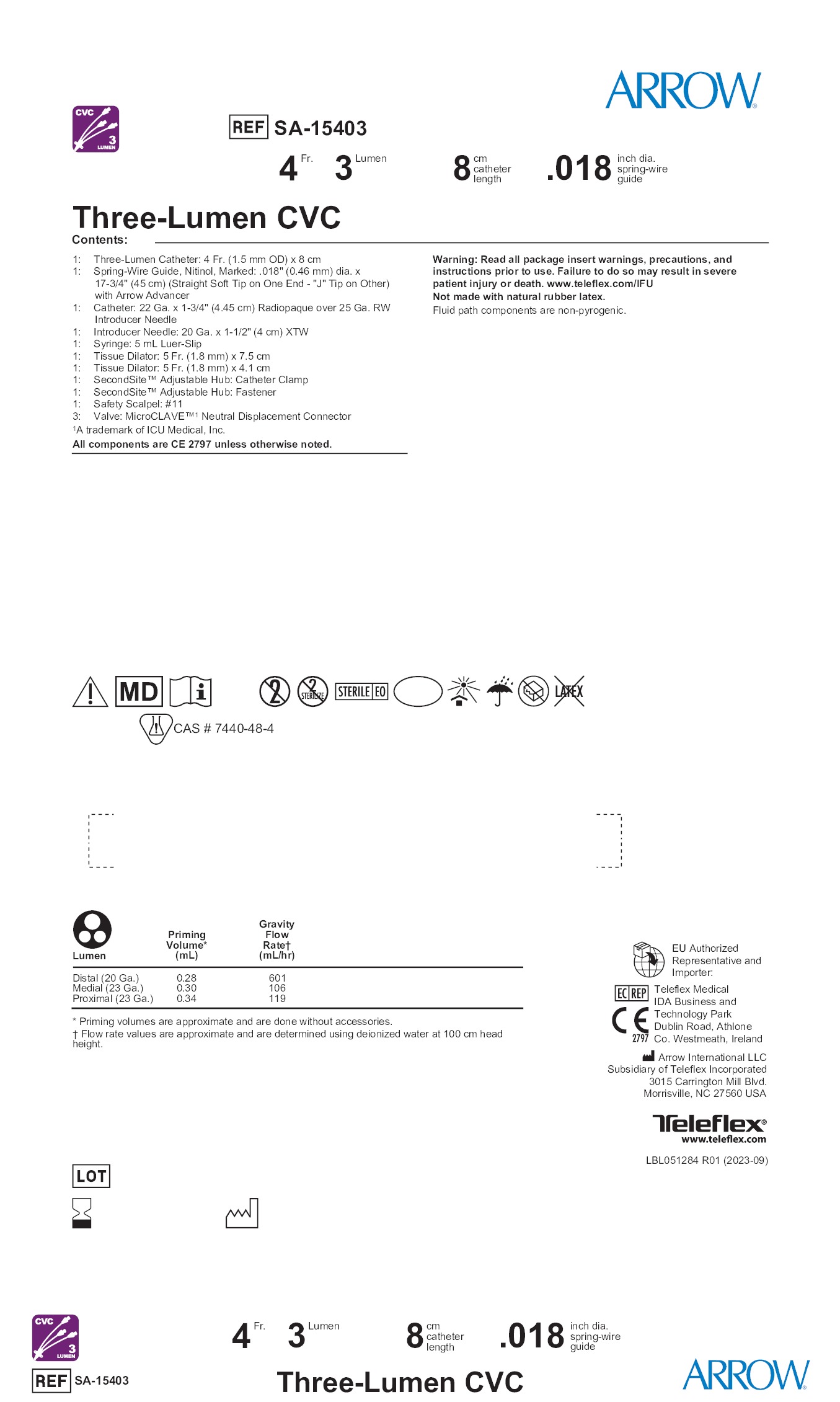

  • Lbl051284
Scroll to View More
  • S 15703 116c
  • Sz 45703 114d
Scroll to View More
  • Lbl051284
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
