ASK-09803-FM1

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

PSI Kit for use with 7.5 - 8 Fr. Catheters

PSI KIT: 8.5 FR

SKU / Article #: ASK-09803-FM1

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 5

PSI Kit for use with 7.5 - 8 Fr. Catheters
SKU / Article #: ASK-09803-FM1
Quantity Component Description
1 Single-Lumen Infusion Catheter, SLIC®: 7 Fr. x 16 cm
1 Arrow-Flex® Sheath: 8.5 Fr. (2.8 mm tip ID) x 10 cm and Tissue Dilator
1 Spring-Wire Guide, Nitinol, Marked: .035" (0.89 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow® GlideWheel™ Wire Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW
1 Injection Needle: Eclipse™1 23 Ga. x 1-1/2" (3.81 cm)
1 Injection Needle: Eclipse™1 25 Ga. x 1" (2.54 cm)
1 Syringe: 3 mL Luer-Lock
2 Syringe: 5 mL Luer-Slip
1 Obturator: 8 Fr.
1 Cath-Gard® Catheter Contamination Shield: 80 cm with TwistLock™ Adapter
1 SharpsAway® Disposal Cup
1 Maximal Barrier Drape™ with 4" fenestration
1 Safety Scalpel: #11
1 Dressing: Tegaderm®2 4" x 4-3/4" (10 cm x 12 cm)
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Transducer Cover: 14 cm x 147 cm
1 Suture: 3-0 Braided Silk with Straight Needle
1 A trademark of Becton, Dickinson and Company.
2 A registered trademark of 3M Company.

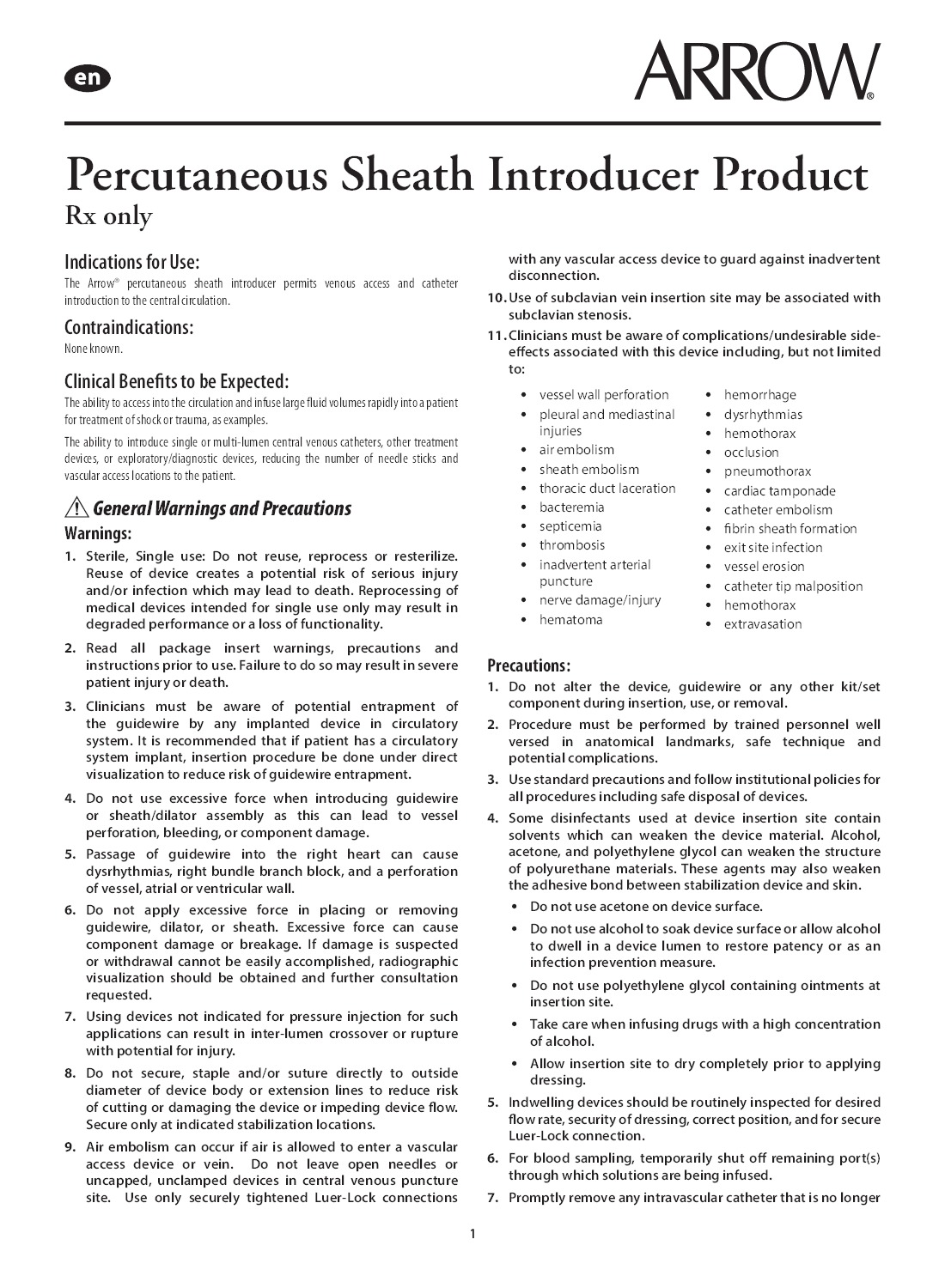

Documents

  • E 05100 100a
  • K 09803 113a

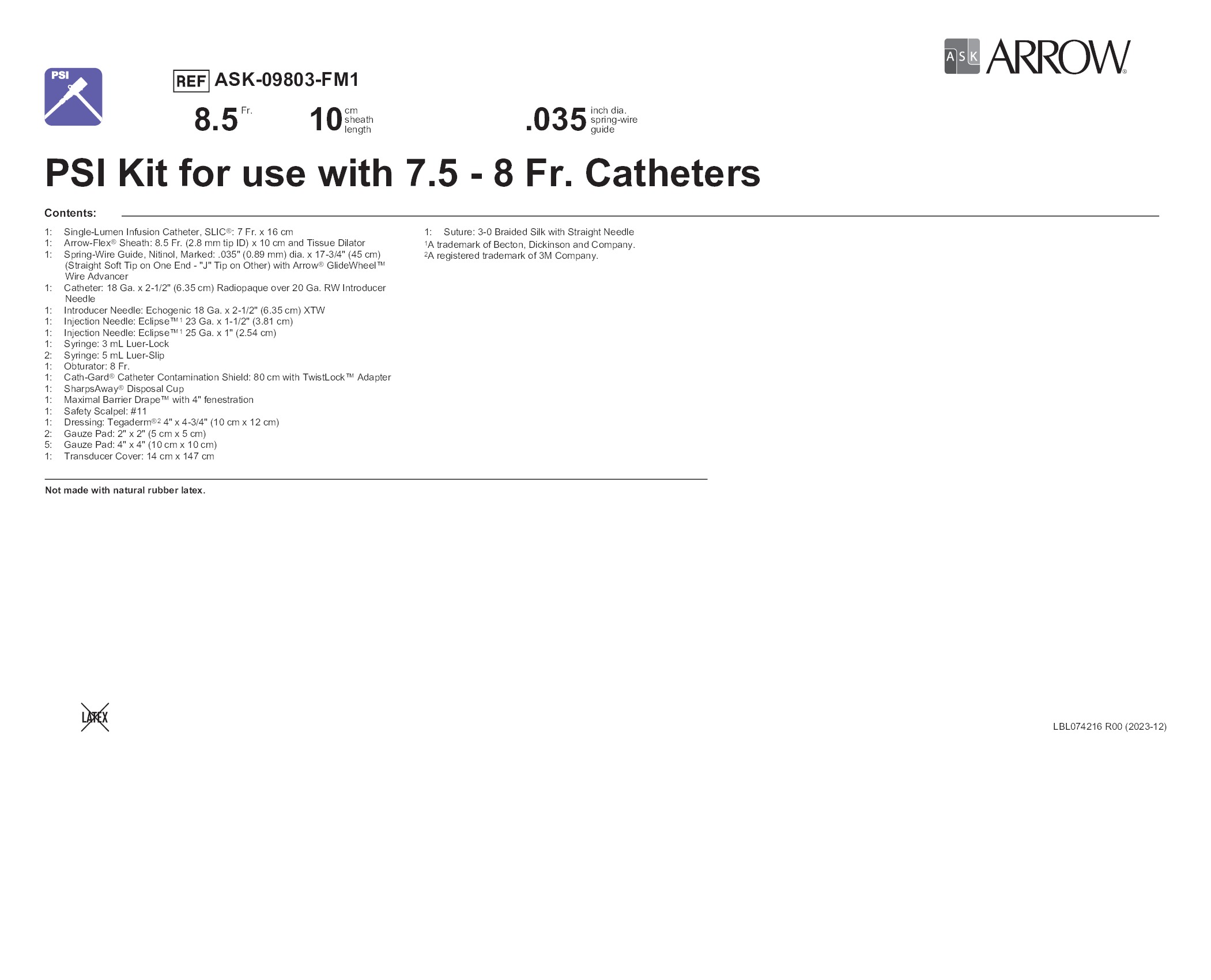

  • Lbl074216
  • M 05500 102a
  • S 14701 134a
  • W 04225 201b
Scroll to View More
  • E 05100 100a
  • K 09803 113a
  • M 05500 102a
  • S 14701 134a
  • W 04225 201b
Scroll to View More
  • Lbl074216
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
