ASK-09903-SM1

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Percutaneous Sheath Introducer Procedural Kits With Silk Sutures

PSI KIT: 9 FR X 4 1/8 IN (10 CM)

SKU / Article #: ASK-09903-SM1

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.
  • ±Precaution: Contains Phthalate: DEHP

Sales Quantity/Case: 5

Percutaneous Sheath Introducer Procedural Kits With Silk Sutures
SKU / Article #: ASK-09903-SM1
Quantity Component Description
1 Arrow-Flex® Sheath: 9 Fr. (2.9 mm tip ID) x 10 cm and Tissue Dilator
1 Spring-Wire Guide, Nitinol, Marked: .035" (0.89 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow® GlideWheel™ Wire Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Pressure Transduction Probe
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: SafetyGlide™1 25 Ga. x 1" (2.54 cm) and 3 mL Luer-Lock Syringe
1 Injection Needle: SafetyGlide™1 23 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 10 mL Luer-Lock
1 Obturator: 8 Fr.
1 Cath-Gard® Catheter Contamination Shield: 80 cm with TwistLock™ Adapter
1 Dust Cap: Non-Vented
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Maximal Barrier Drape™ with 4" fenestration
1 Drape: 21" x 36" (53 cm x 91 cm) with 3" (7.6 cm) fenestration, with adhesive
1 Towel
1 Needle Holder
1 Forceps
1 Safety Scalpel: #11
1 Stopcock: 4-way High-Flow
1 Checklist/CLIP Sheet
1 Sterile Procedure Sign
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Dressing: I.V. Advanced 10 cm x 12 cm
1 Transducer Cover: 14 cm x 147 cm
1 Suture: 3-0 Braided Silk with Straight Needle
1 Suture: 3-0 Silk with Curved Needle
1 Tubing±: 20" (50 cm) Extension
1 HemoHopper® Fluid Receptacle
1 A trademark of Becton, Dickinson and Company.

Documents

  • M 05500 105a
  • K 01552 112a
  • K 09803 113a

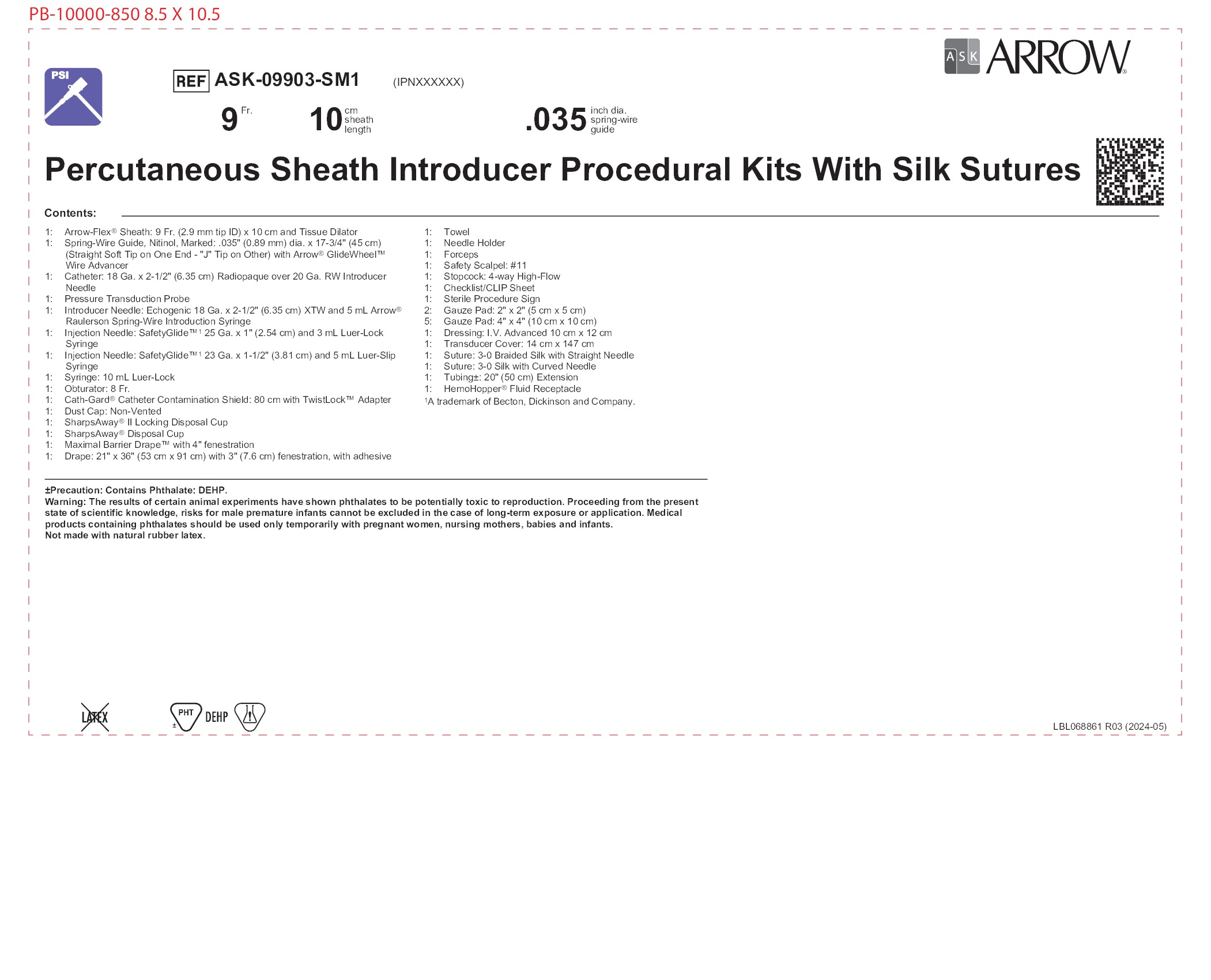

  • Lbl068861
  • W 04225 201b
Scroll to View More
  • M 05500 105a
  • K 01552 112a
  • K 09803 113a
  • W 04225 201b
Scroll to View More
  • Lbl068861
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
