ASK-12703-SPH2

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Three-Lumen CVC Kit

MULTI LUMEN PI CVC KIT: 3L 7 FR X 6IN

SKU / Article #: ASK-12703-SPH2

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable Three-Lumen CVC Kit
SKU / Article #: ASK-12703-SPH2
Quantity Component Description
1 Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 16 cm, Pressure Injectable
1 Spring-Wire Guide, Nitinol, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow® GlideWheel™ Wire Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: Eclipse™1 23 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Injection Needle: Eclipse™1 25 Ga. x 1" (2.54 cm) and 3 mL Luer-Lock Syringe
1 Syringe: 10 mL Luer-Lock
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Maximal Barrier Drape™ with 4" fenestration
1 Towel
1 Needle Holder
1 Safety Scalpel: #11
1 Checklist/CLIP Sheet
1 Sterile Procedure Sign
2 Gauze Pad: 3" x 3" (7.6 cm x 7.6 cm)
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
8 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Surgical Apparel: Impervious Gown
1 Dressing: I.V. Advanced 8.5 cm x 11.5 cm
1 Transducer Cover: 14 cm x 147 cm
1 Surgical Apparel: Bouffant Cap
1 Surgical Apparel: Mask with Eye Shield
1 Suture: 3-0 Silk with Curved Needle
3 Valve: MaxZero™2 Needleless Connector
1 HemoHopper® Fluid Receptacle
1 A trademark of Becton, Dickinson and Company.
2 A trademark of CareFusion or one of its subsidiaries.

Documents

  • E 05100 100a
  • Ic 45000 100d
  • K 45703 131a

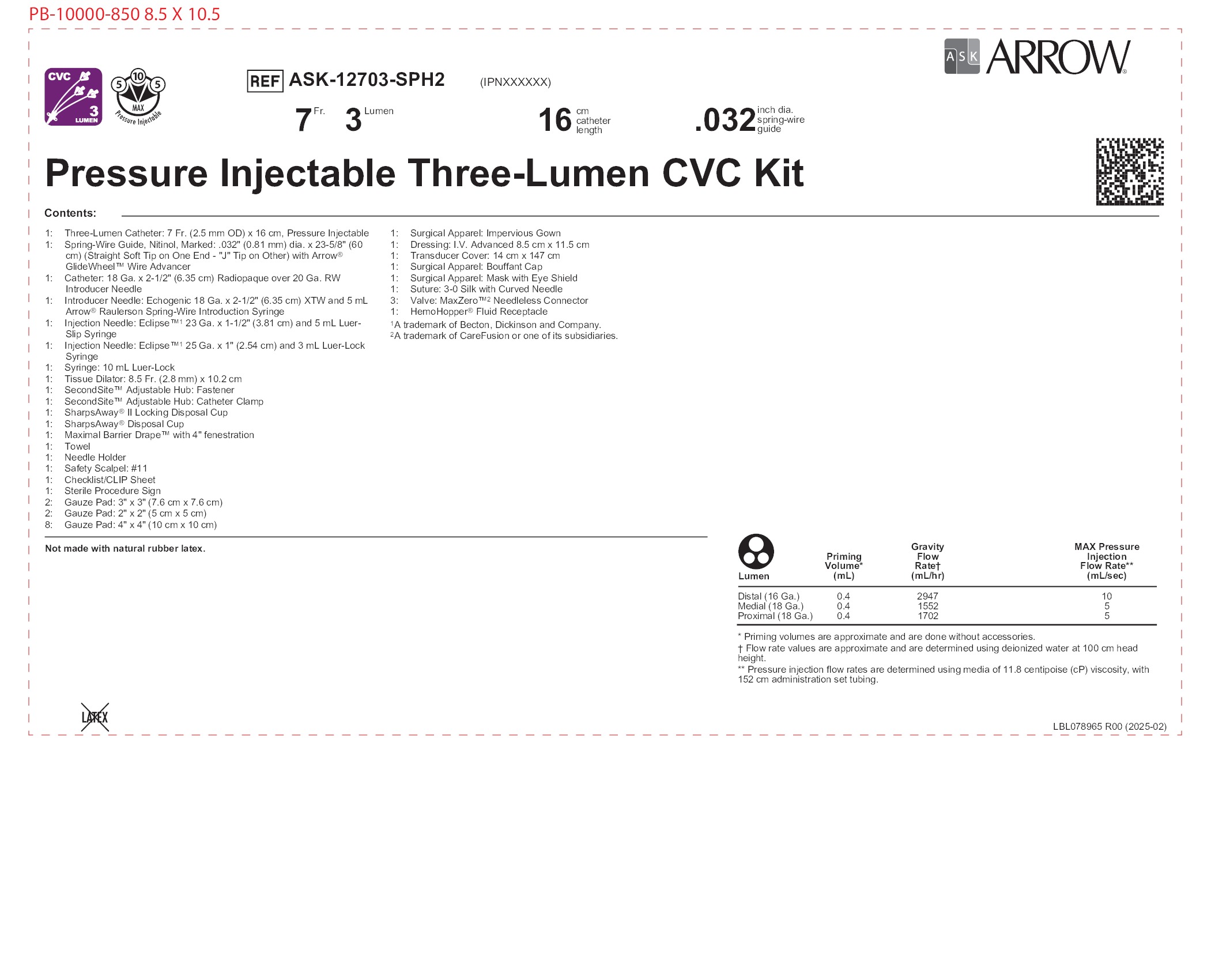

  • Lbl078965
  • M 05500 105a
  • S 15703 122a
Scroll to View More
  • E 05100 100a
  • K 45703 131a
  • M 05500 105a
  • S 15703 122a
Scroll to View More
  • Ic 45000 100d
  • Lbl078965
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
