ASK-42703-PSI1

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Arrowg+ard Blue Plus® Three-Lumen CVC/PSI Kit for use with 7 - 7.5 Fr. Catheters

CVC/PSI KIT: 3L 7FR X 16CM/8.5FR X 10CM

SKU / Article #: ASK-42703-PSI1

Highlights

  • Antimicrobial: Arrowg+ard Blue Plus*
  • Sharps Safety

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • ±Precaution: Contains Phthalate: DEHP

Sales Quantity/Case: 5

Pressure Injectable Arrowg+ard Blue Plus® Three-Lumen CVC/PSI Kit for use with 7 - 7.5 Fr. Catheters
SKU / Article #: ASK-42703-PSI1
Quantity Component Description
1 Arrowg+ard Blue Plus®1 Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 16 cm, Pressure Injectable
1 Arrow-Flex® Sheath: 8.5 Fr. (2.8 mm tip ID) x 10 cm and Tissue Dilator
1 Spring-Wire Guide, Marked: .035" (0.89 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Spring-Wire Guide, Marked: .032" (0.81 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
2 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm)
2 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW
1 Pressure Transduction Probe
1 Injection Needle: Eclipse™2 25 Ga. x 1" (2.54 cm) and 3 mL Luer-Lock Syringe
1 Syringe: 10 mL Luer-Lock
2 Arrow® Raulerson Spring-Wire Introduction Syringe: 5 mL
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
1 Obturator: 8 Fr.
1 Cath-Gard® Catheter Contamination Shield: 80 cm with Sterile Tape
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Drape: 30" x 36" (76 cm x 91 cm) with 3" (7.6 cm) fenestration, with adhesive
1 Needle Holder
1 Safety Scalpel: #11
1 Stopcock: 3-way High-Flow
1 Checklist/CLIP Sheet
1 Sterile Procedure Sign
3 Dressing: Tegaderm®3 4" x 4-3/4" (10 cm x 12 cm)
4 Gauze Pad: 2" x 2" (5 cm x 5 cm)
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Braided Silk with Straight Needle
1 Suture: 3-0 Silk with Curved Needle
1 Tubing±: 20" (50 cm) Extension
4 Clearlink™4 Luer-Activated Valve
1 HemoHopper® Fluid Receptacle
1 Licensed under US Patent No. 7,329,412.
2 A trademark of Becton, Dickinson and Company.
3 A registered trademark of 3M Company.
4 A trademark of Baxter International, Inc.

Documents

  • E 05100 100a
  • K 09803 113a

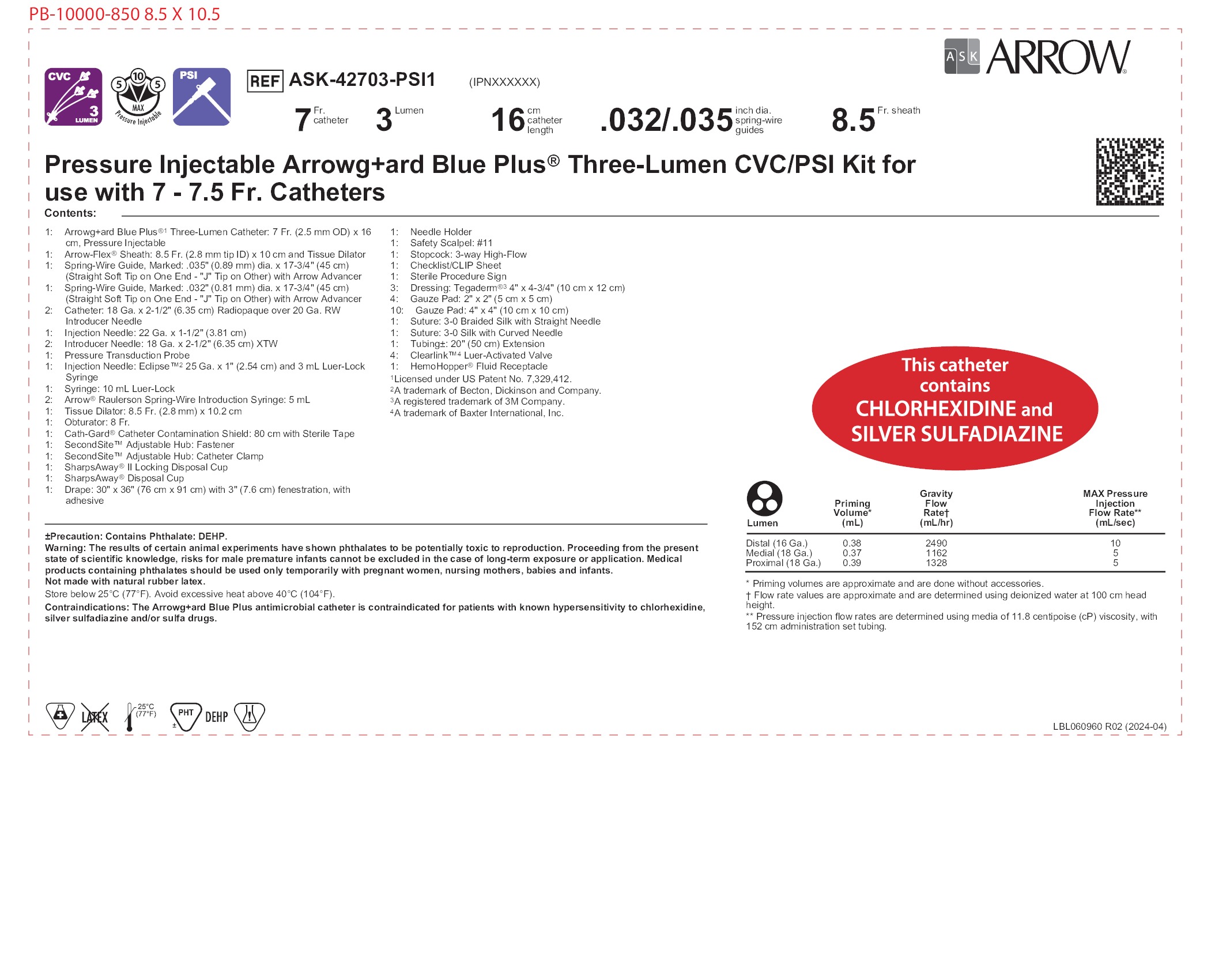

  • Lbl060960
  • M 05500 102a
  • S 45703 128a
Scroll to View More
  • E 05100 100a
  • K 09803 113a
  • M 05500 102a
  • S 45703 128a
Scroll to View More
  • Lbl060960
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
