ASK-42703-PWO

Representative photo(s): actual product specifications may vary from that shown in the photo

Pressure Injectable ARROWg+ard Blue PLUS® Multi-Lumen CVC Kit

PI CVC KIT: 3-L 7 FR X 6" (16 CM) AGB+

SKU / Article #: ASK-42703-PWO

Highlights

  • Antimicrobial: Arrowg+ard Blue Plus*
  • Sharps Safety

Contraindications & Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.

Sales Quantity/Case: 3

Pressure Injectable ARROWg+ard Blue PLUS® Multi-Lumen CVC Kit
SKU / Article #: ASK-42703-PWO

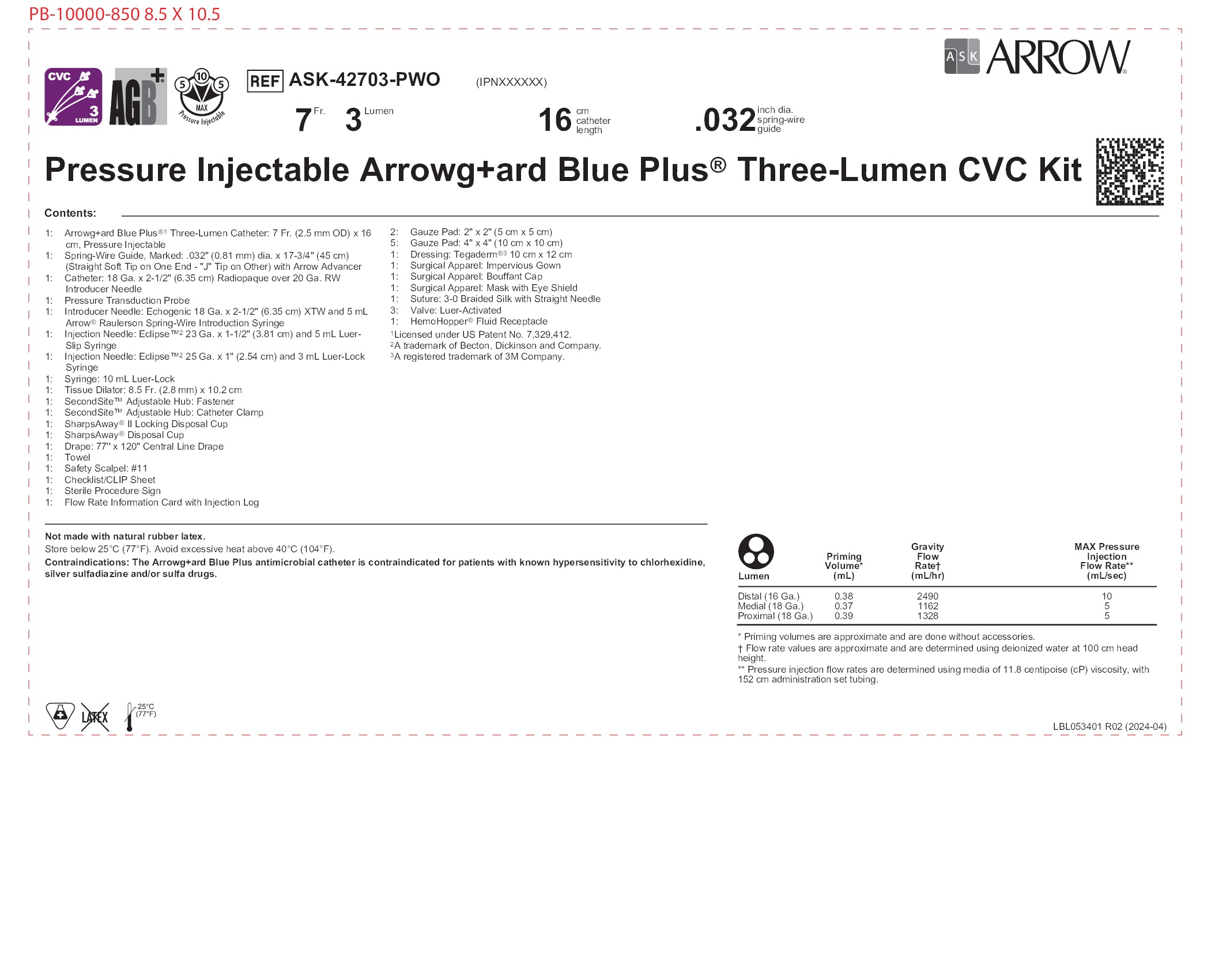

Quantity Component Description

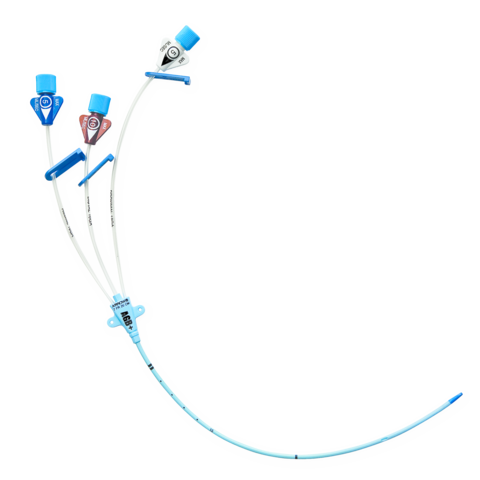

1 Arrowg+ard Blue Plus®1 Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 16 cm, Pressure Injectable
1 Spring-Wire Guide, Marked: .032" (0.81 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Pressure Transduction Probe
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: Eclipse2 22 Ga. x 1-1/2" (3.81 cm) RW and 5 mL Luer-Slip Syringe
1 Injection Needle: Eclipse2 25 Ga. x 1" (2.54 cm) RW and 3 mL Luer-Lock Syringe
1 Syringe: 10 mL Luer-Lock
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
1 SecondSite Adjustable Hub: Fastener
1 SecondSite Adjustable Hub: Catheter Clamp
1 SharpsAway® Disposal Cup
1 SharpsAway® II Locking Disposal Cup
1 Drape: 77'' x 120'' Central Line Drape
1 Towel
1 Safety Scalpel: #11
1 Checklist/CLIP Sheet
1 Sterile Procedure Sign
1 Flow Rate Information Card with Injection Log
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Dressing: Tegaderm®3 10 cm x 12 cm
1 Surgical Apparel: Impervious Gown
1 Surgical Apparel: Bouffant Cap
1 Surgical Apparel: Mask with Eye Shield
1 Suture: 3-0 Braided Silk with Straight Needle
3 Valve: Luer-Activated
1 HemoHopper® Fluid Receptacle
1 Licensed under US Patent No. 7,329,412.
2 A trademark of Becton, Dickinson and Company.
3 A registered trademark of 3M Company.
4 A registered trademark of ICU Medical, Inc.
