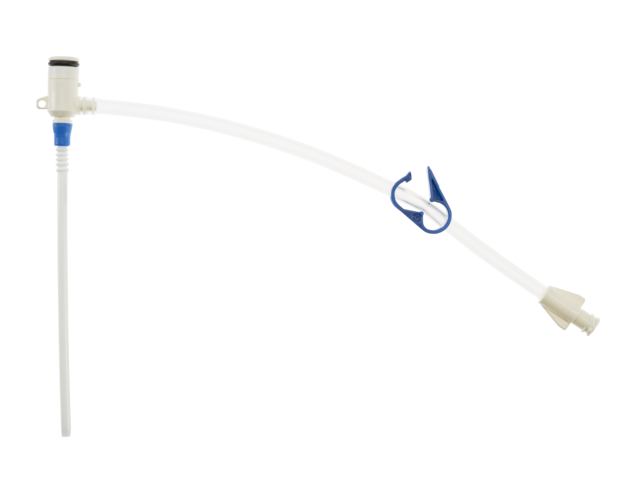

PSI for use with 7 - 7.5 Fr. Catheters

PSI KIT: 8.5 FR

SKU / Article #: CA-09803

Considerations

  • Caution: This product contains dry natural rubber.

Sales Quantity/Case: 10

PSI for use with 7 - 7.5 Fr. Catheters
SKU / Article #: CA-09803
Quantity Component Description
1 Arrow-Flex® Sheath: 8.5 Fr. (2.8 mm tip ID) x 10 cm and Tissue Dilator
1 Spring-Wire Guide, Marked: .035" (0.89 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Pressure Transduction Probe
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: 25 Ga. x 1" (2.54 cm) and 3 mL Luer-Lock Syringe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Obturator: 8 Fr.
1 Cath-Gard® Catheter Contamination Shield: 80 cm with TwistLock™ Adapter
1 Dust Cap: Non-Vented
1 SharpsAway® Disposal Cup
1 Drape: 24" x 36" (61 cm x 91 cm) with 4" (10 cm) fenestration
1 Drape: 24" x 36" (61 cm x 91 cm)
1 Scalpel: #11
1 Stopcock: 4-way High-Flow
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Braided Silk with Straight Needle

Documents

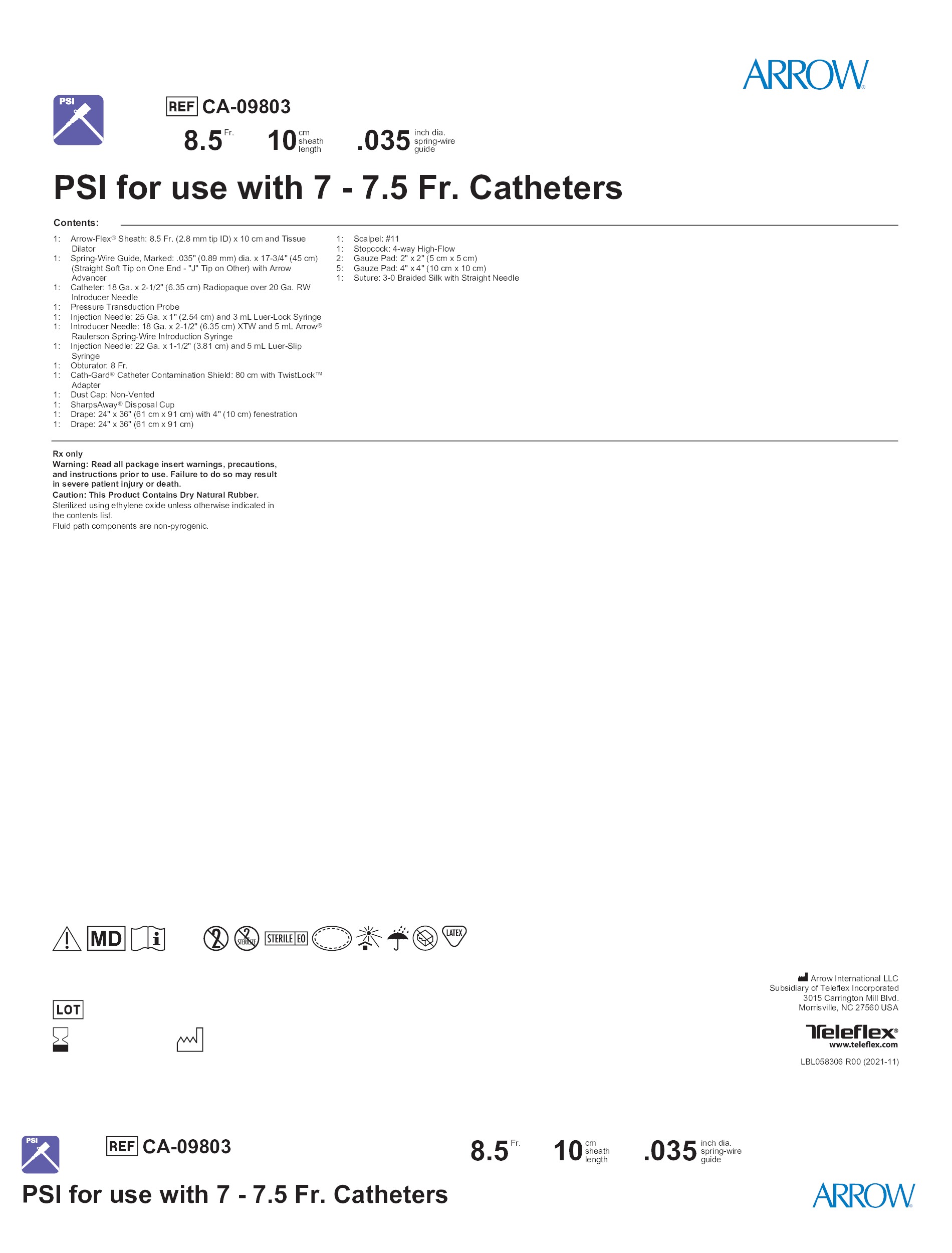

  • K 09803 113a
