Access Tray with TipTracker™ Stylet for use with 5 Fr. PICC

PICC ACCESS TRAY

SKU / Article #: CAN-04001-AX

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 3

Access Tray with TipTracker™ Stylet for use with 5 Fr. PICC
SKU / Article #: CAN-04001-AX
Quantity Component Description
1 GlideThru™ Peel-Away Sheath: 5 Fr. x 2-3/4" (7 cm) Radiopaque over 5 Fr. Dilator
1 Spring-Wire Guide, Nitinol, Marked: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - Straight Stiff Tip on Other) with Arrow Advancer
1 VPS TipTracker™ Stylet with T-Port Connector: 0.015" (0.38 mm) dia. x 29" (74 cm)
1 Filter Needle: 18 Ga. TW x 1-1/2" (3.81 cm) with Blunt Fill Tip
1 Injection Needle: Eclipse™1 25 Ga. x 1" (2.54 cm)
1 Safety Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Syringe: 3 mL Luer-Lock
1 Dust Cap: Non-Vented
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Catheter Trimmer
1 Towel: 24" x 36" (61 cm x 91 cm)
1 Maximal Barrier Drape™ with two 13 cm (5") x 15 cm (6") fenestrations
2 Towel
1 Needle Holder
1 Sterile Procedure Sign
2 Paper Tape Measure
2 Tourniquet
1 Foam Electrodes (3 per pack)
5 Gauze Pad: 2" x 2" (5 cm x 5 cm)
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Surgical Apparel: Impervious Gown
1 Dressing: I.V. Advanced 10 cm x 15.5 cm
1 Transducer Cover with Gel and Rubber Bands
1 Remote Cover
1 SecurePortIV®2 Catheter Securement Adhesive
1 Surgical Tape: Transpore™3 1" x 54" Roll
1 Valve: MaxZero™4 Needleless Connector
1 T-Piece Cover
1 A trademark of Becton, Dickinson and Company.
2 A registered trademark of H.B. Fuller Medical Adhesive Technologies, LLC.
3 A trademark of 3M Company.
4 A trademark of CareFusion or one of its subsidiaries.

Documents

  • E 05100 100a
  • K 15703 126b
  • K 45703 131a
  • M 05500 105a
  • S 00760 100b

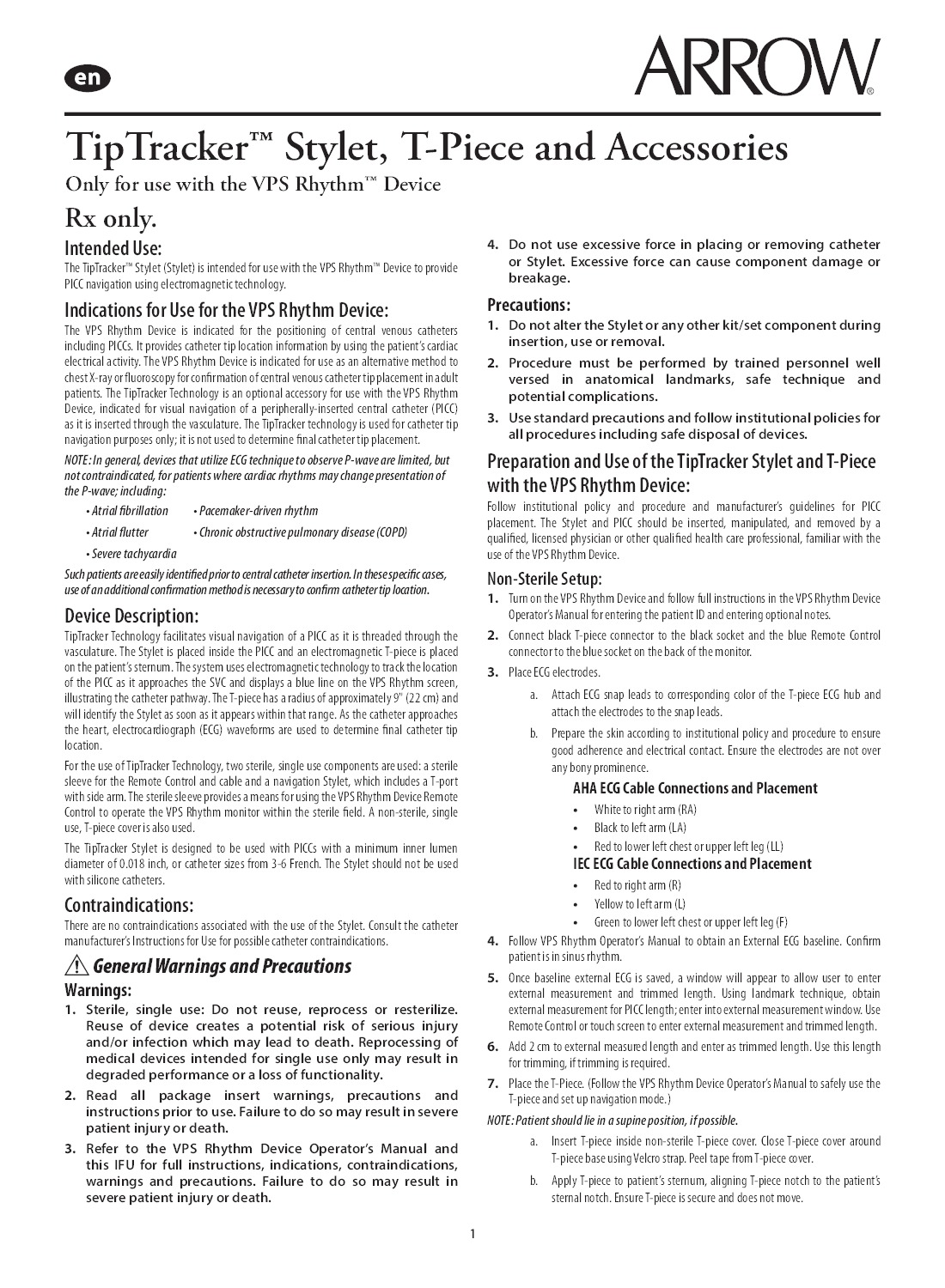

  • S 20100 102a
  • W 04225 202a

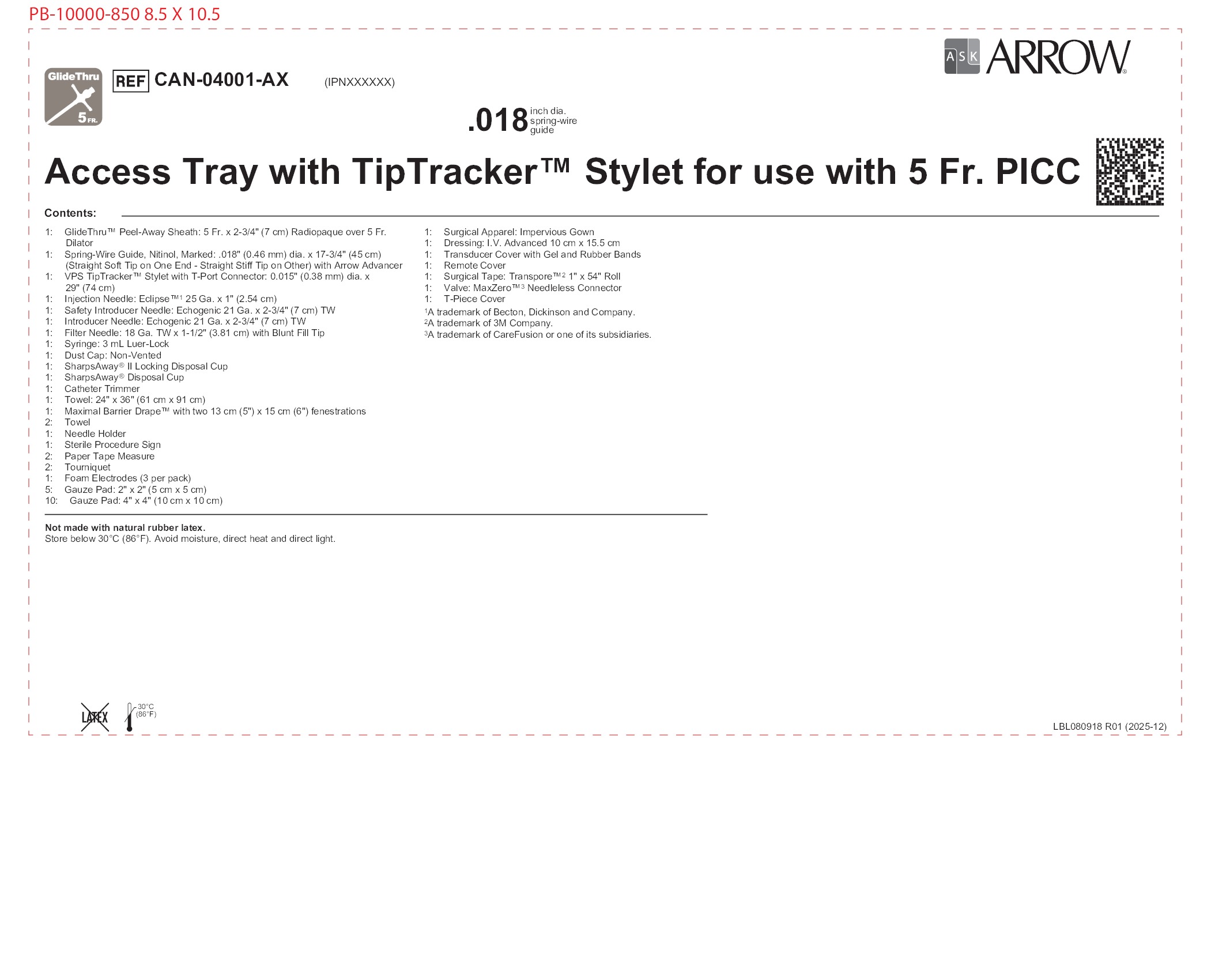

  • Lbl080918
  • S 01552 301a
Scroll to View More
  • E 05100 100a
  • K 15703 126b
  • K 45703 131a
  • M 05500 105a
  • S 00760 100b
  • S 20100 102a
  • W 04225 202a
  • S 01552 301a
Scroll to View More
  • Lbl080918
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
