CDC-15703-P1A

Representative photo(s): actual product specifications may vary from that shown in the photo

Pressure Injectable Three-Lumen CVC

MULTILUMEN PI CVC KIT: 3L 7 FR X 20 CM

SKU / Article #: CDC-15703-P1A

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.
  • Includes Lidocaine

Sales Quantity/Case: 5

Pressure Injectable Three-Lumen CVC
SKU / Article #: CDC-15703-P1A
Quantity Component Description
1 Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 20 cm, Pressure Injectable
1 Spring-Wire Guide, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: SafetyGlide1 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: SafetyGlide1 23 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®2 One-Step Solution with Hi-Lite Orange Tint
1 SecondSite Adjustable Hub: Fastener
1 SecondSite Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Maximal Barrier Drape with 4" fenestration
1 Needle Holder
1 Safety Scalpel: #11
1 Sterile Procedure Sign
1 Medication Label: 1% Lidocaine
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Surgical Apparel: Impervious Gown
1 Surgical Apparel: Bouffant Cap
1 Surgical Apparel: Mask with Eye Shield
1 Suture: 3-0 Silk with Curved Needle
1 A trademark of Becton, Dickinson and Company.
2 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 121

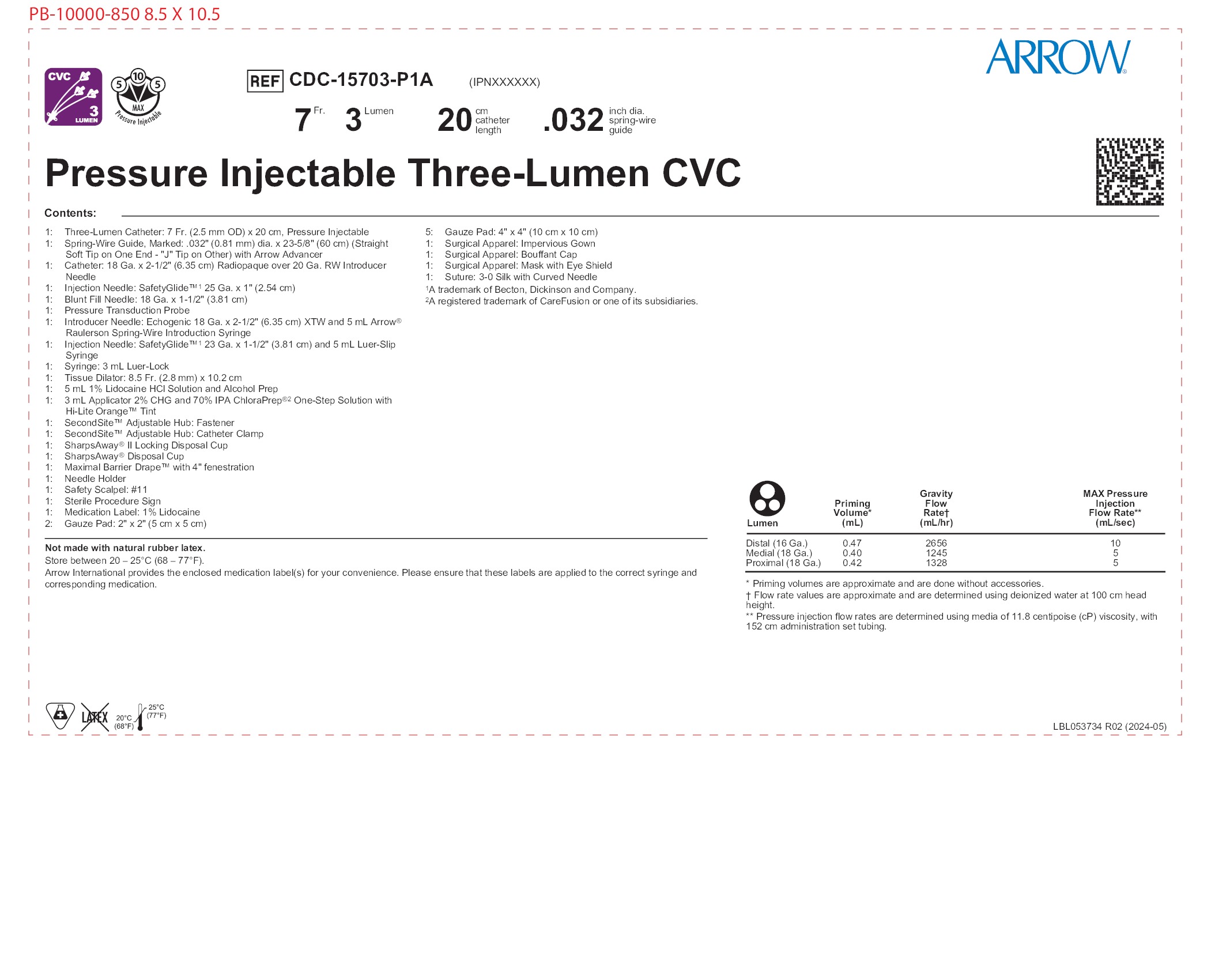

  • Lbl053734
  • S 15703 122a
  • K 01552 112a
Scroll to View More
  • K 07800 121
  • S 15703 122a
  • K 01552 112a
Scroll to View More
  • Lbl053734
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
