Representative photo(s): actual product specifications may vary from that shown in the photo
Peripherally Inserted Central Catheter with Seldinger Access Set with 80 cm Platinum Tipped, Marked Wire
PICC SET: 3 FR X 21-1/2" (55 CM)
SKU / Article #: PR-01351-MH
Highlights
- CE Mark
Sales Quantity/Case: 5
|
Peripherally Inserted Central Catheter with Seldinger Access Set with 80 cm Platinum Tipped, Marked Wire
SKU / Article #: PR-01351-MH |
||
|---|---|---|
| Quantity | Component Description | |
| 1 | Indwelling Catheter, Trimmable: 3 Fr. x 55 cm Radiopaque Polyurethane with Integral Extension Line, Extension Line Clamp, Integral Suture Wing, Contamination Guard | |
| 1 | GlideThru™ Peel-Away Sheath: 3 Fr. x 2-3/4" (7 cm) Radiopaque over 3 Fr. Dilator | |
| 1 | Spring Wire Guide Assembly: .016" (0.40 mm) dia. x 13-1/8" (33 cm) (Straight Soft Tip On Both Ends) | |
| 1 | Spring-Wire Guide, Marked: .018" (0.46 mm) dia. x 31-1/2" (80 cm) (Straight Soft Tip on One End - Straight Stiff Tip on Other) | |
| 1 | Catheter: 22 Ga. x 1-3/4" (4.45 cm) Radiopaque over 25 Ga. RW Introducer Needle | |
| 1 | Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW | |
| 1 | Syringe: 5 mL Luer-Slip | |
| 1 | Injection Site Cap | |
| 1 | Catheter Trimmer | |
| 1 | Patient ID Card | |
| 1 | Chart Sticker | |
| 1 | Patient Information Booklet | |
| 1 | Paper Tape Measure | |
Documents
Scroll to View More
Scroll to View More
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.

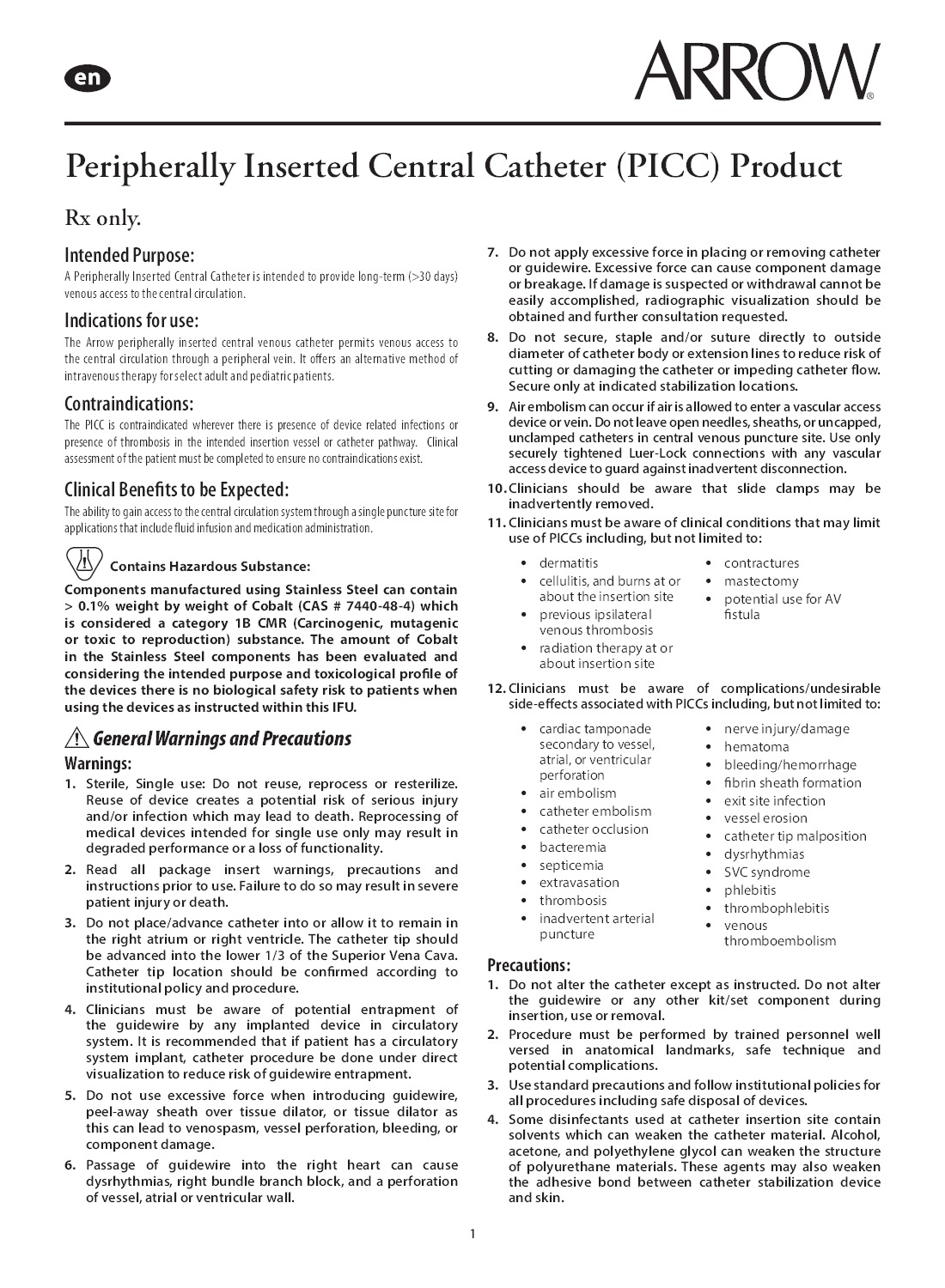

Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
