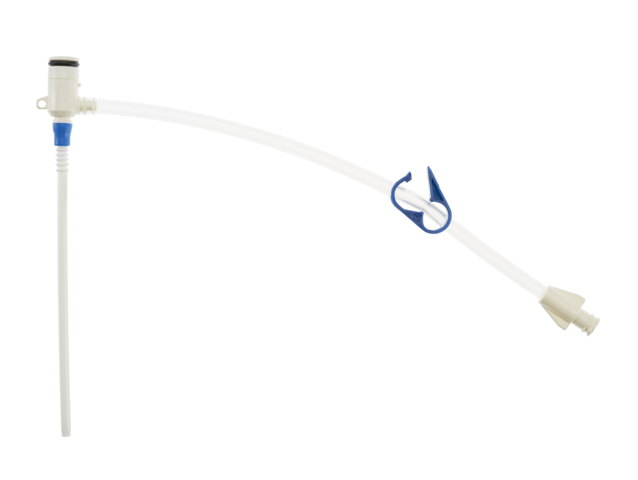

Representative photo(s): actual product specifications may vary from that shown in the photo
Percutaneous Sheath Introducer Set with Integral Hemostasis Valve/Side Port for use with 7 - 7.5 Fr. Catheters
PSI SET: 8.5 FR
SKU / Article #: SI-09880-SE
Highlights
- CE Mark
Considerations
- Caution: This product contains dry natural rubber.
Sales Quantity/Case: 10
Percutaneous Sheath Introducer Set with Integral Hemostasis Valve/Side Port for use with 7 - 7.5 Fr. Catheters
SKU / Article #: SI-09880-SE |
||
---|---|---|
Quantity | Component Description | |
1 | Arrow-Flex® Sheath: 8.5 Fr. (2.8 mm tip ID) x 10 cm and Tissue Dilator | |
1 | Spring-Wire Guide, Marked: .035" (0.89 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer | |
1 | Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW | |
1 | Pressure Transduction Probe | |
1 | Arrow® Raulerson Spring-Wire Introduction Syringe: 5 mL | |
1 | Obturator: 8 Fr. | |
1 | Cath-Gard® Catheter Contamination Shield: 80 cm with Sterile Tape | |
3 | Gauze Pad: 4" x 4" (10 cm x 10 cm) |
Documents
Scroll to View More
Scroll to View More
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
