AK-22702-P1A

Representative photo(s): actual product specifications may vary from that shown in the photo

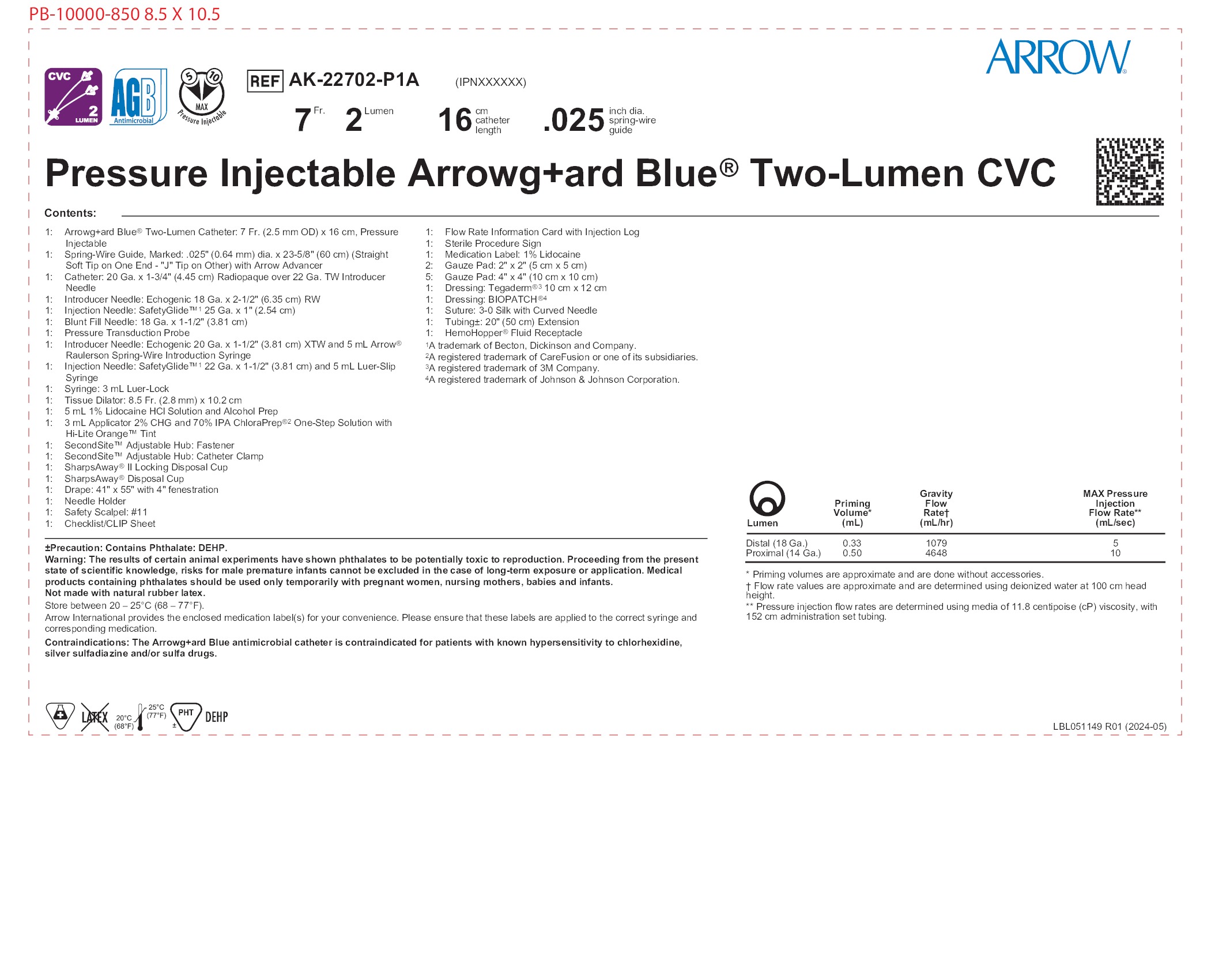

ARROWg+ard Blue® Two-Lumen Central Venous Catheterization Kit

PI CVC KIT: 2-L 7 FR X 16 CM ANTIMICROBIAL

SKU / Article #: AK-22702-P1A

Highlights

  • Antimicrobial: Arrowg+ard Blue*
  • Sharps Safety

Contraindications & Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • Includes Lidocaine
  • Precaution: Contains Phthalate: DEHP

Sales Quantity/Case: 5

ARROWg+ard Blue® Two-Lumen Central Venous Catheterization Kit
SKU / Article #: AK-22702-P1A
Quantity Component Description
1 Two-Lumen Indwelling Catheter: 7 Fr. x 6" (16 cm) Pressure Injectable Radiopaque Polyurethane with Blue FlexTip®, ARROWg+ard® Antimicrobial Surface Treatment1, Extension Line Clamps
1 Spring-Wire Guide, Marked: .025" (0.64 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 20 Ga. x 1-3/4" (4.45 cm) Radiopaque over 22 Ga. TW Introducer Needle
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) RW
1 Injection Needle: SafetyGlide2 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: Echogenic 20 Ga. x 1-1/2" (3.81 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: SafetyGlide2 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®3 One-Step Solution with Hi-Lite Orange Tint (non-sterile solution)
1 SecondSite Adjustable Hub: Fastener
1 SecondSite Adjustable Hub: Catheter Clamp
1 SharpsAway® Disposal Cup
1 SharpsAway II Locking Disposal Cup
1 Drape: 41" x 55" with 4" fenestration
1 Needle Holder
1 Safety Scalpel: #11
1 Checklist/CLIP Sheet
1 Flow Rate Information Card with Injection Log
1 Sterile Procedure Sign
1 Medication Label: 1% Lidocaine
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Dressing: Tegaderm®4 10 cm x 12 cm
1 Dressing: BIOPATCH®5
1 Suture: 3-0 Silk with Curved Needle
1 TubingĀ±: 20" (50 cm) Extension
1 HemoHopper® Fluid Receptacle
1 Licensed under US Patent No. 6,706,024.
2 A trademark of Becton, Dickinson and Company.
3 A registered trademark of CareFusion or one of its subsidiaries.
4 A registered trademark of 3M Company.
5 A registered trademark of Johnson & Johnson Corporation.

Documents

  • C 22702 102a
  • M 05500 102a
  • K 01552 112a
  • O 42703 101a
  • K 07800 112
  • S 15703 111a
  • K 22702 300a
Scroll to View More
  • C 22702 102a
  • M 05500 102a
  • K 01552 112a
  • O 42703 101a
  • K 07800 112
  • S 15703 111a
Scroll to View More
  • K 22702 300a
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
