DLX-45563-CURVB

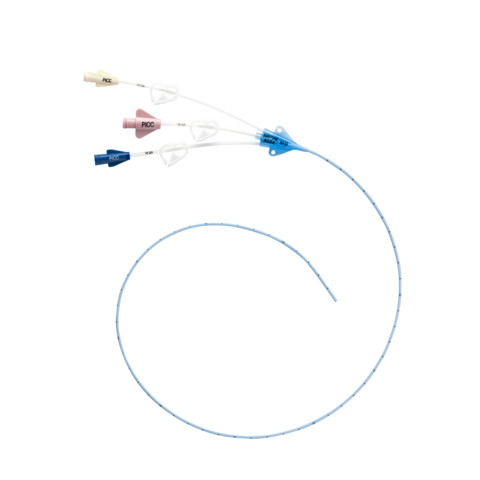

Representative photo(s): actual product specifications may vary from that shown in the photo

Pressure Injectable Arrowg+ard Blue Advance® Three-Lumen PICC pre-loaded with Arrow® NaviCurve Stylet

AGBA PICC NaviCurve: 3L 6FR x 55CM BP

SKU / Article #: DLX-45563-CURVB

Highlights

  • Antimicrobial: Arrowg+ard Blue Advance*
  • Antithrombogenic: Arrowg+ard Blue Advance*
  • Sharps Safety

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • Includes Lidocaine
  • ǂǂǂMR Safe

Sales Quantity/Case: 3

Pressure Injectable Arrowg+ard Blue Advance® Three-Lumen PICC pre-loaded with Arrow® NaviCurve Stylet
SKU / Article #: DLX-45563-CURVB
Quantity Component Description
1 Three Lumen TaperFree® Catheter‡‡‡ with Arrowg+ard Blue Advance® Antimicrobial/Antithrombogenic Protection1: 6 Fr. (2.11 mm OD) x 55 cm, Pressure Injectable, Arrow® NaviCurve Stylet and T-Port Connector
1 GlideThru Peel-Away Sheath: 6 Fr. x 2-3/4" (7 cm) Radiopaque over 6 Fr. Dilator
1 Spring-Wire Guide, Nitinol, Marked: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - Straight Stiff Tip on Other) with Arrow Advancer
1 Injection Needle: SafetyGlide2 25 Ga. x 5/8" (1.60 cm)
1 Safety Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Syringe: 5 mL Luer-Lock
4 10 mL Luer-Lock Pre-Filled Saline Syringe
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®3 One-Step Solution
2 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®3 One-Step Solution with Hi-Lite Orange Tint
3 Dust Cap: Non-Vented
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Catheter Trimmer
1 Towel: 24" x 36" (61 cm x 91 cm)
1 Maximal Barrier Drape with two 13 cm (5") x 15 cm (6") fenestrations
1 Safety Scalpel: #11
1 Sterile Procedure Sign
1 Patient ID Card
1 Patient Information Booklet
1 Medication Label: 1% Lidocaine
2 Paper Tape Measure
1 Tourniquet
1 Foam Electrodes (3 per pack)
10 Gauze Pad: 2" x 2" (5 cm x 5 cm)
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Surgical Apparel: Impervious Gown
1 Dressing: I.V. Advanced 8.5 cm x 11.5 cm
1 Dressing: BIOPATCH®4
1 Transducer Cover with Gel and Rubber Bands
1 Remote Cover
1 Surgical Apparel: Mask with Eye Shield
1 Dressing: STATLOCK®5 PICC Plus Catheter Stabilization Device
1 Surgical Apparel: Bouffant Cap
1 Surgical Apparel: Mask
1 Tape: Steri-Strip®6
1 T-Piece Cover
1 Licensed under US Patent No. 7,329,412 and 11,219,706.
2 A trademark of Becton, Dickinson and Company.
3 A registered trademark of CareFusion or one of its subsidiaries.
4 A registered trademark of Johnson & Johnson Corporation.
5 A registered trademark of C. R. Bard, Inc.
6 A registered trademark of 3M Company.

Documents

  • A 06041 111b
  • K 01552 112b
  • K 01552 117b
  • K 07800 121

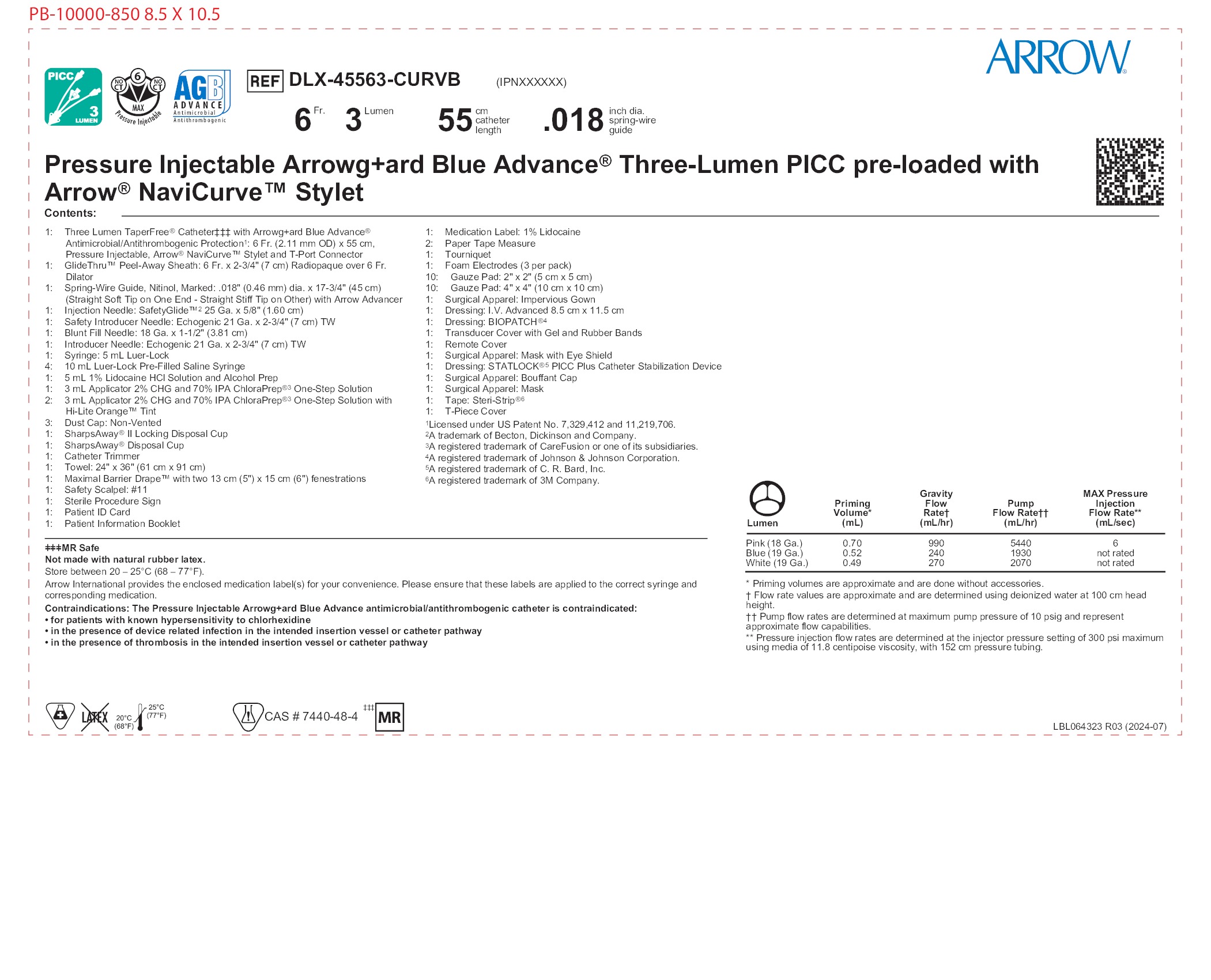

  • Lbl064323
  • O 42703 101a
  • S 05041 400
  • S 20100 201a
  • M 05500 103b
Scroll to View More
  • A 06041 111b
  • K 01552 112b
  • K 01552 117b
  • K 07800 121
  • O 42703 101a
  • S 05041 400
  • S 20100 201a
  • M 05500 103b
Scroll to View More
  • Lbl064323
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
